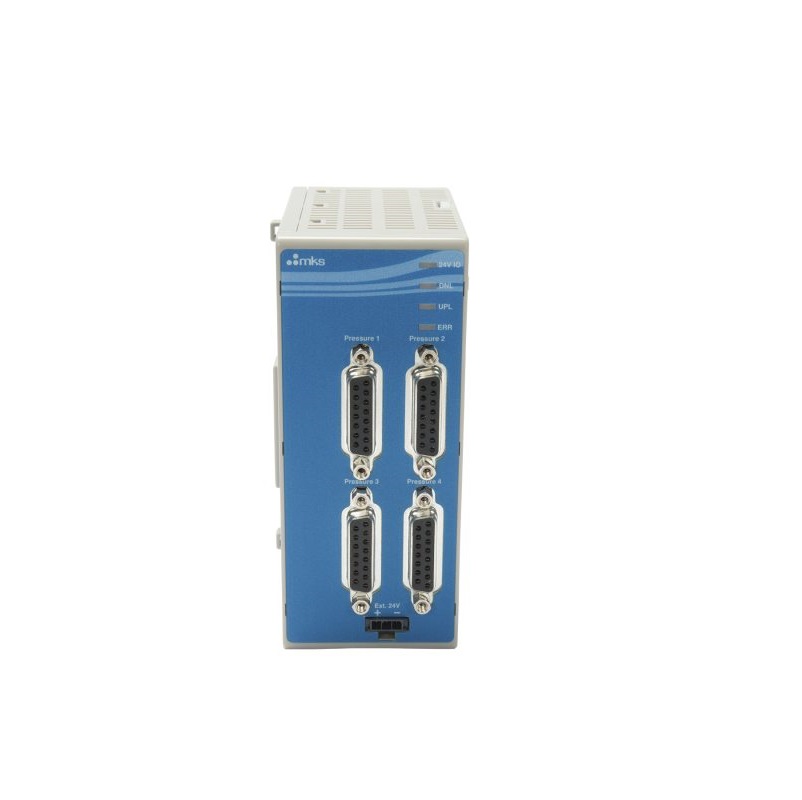

MKS AS11900G-03 Pressure Input Modules (15 pin D-Sub; 4-Ch)

ADC Native Resolution: 14-bit

AI latency and repeatability: Response Time: 300µsec ±10%

Number of Inputs: 4, Single Ended (1 for each pressure signal input)

Power Consumption: 24 V Core: 3.5 W, 24 V IO: Maximum 120 W

(When all 4 pressure devices consume 0.8Amp Maximum each from ±15 V power supply)

Connector: 15 pin D-sub

Maximum Current Delivery per connector: 0.8 Amps

Input Voltage: 24 VDC

Maximum error over full range: ±0.15% of Full Scale (20°C to 30°C)

Minimum Input CMRR: 50 dB, 0-1 kHz

Minimum Input Impedance: 1 Meg-ohm

Protection: ESD to IEC 61000-4-2 ±4 kV contact,

Sampling Rate: 6.25 kHz (160µsec, for all 4 channels) short to 24 V, +15 V, or -15 V

Operating Temperature: 0 - 40°C, with 2°C upper limit reduction per 1000 ft above sea level.

Note: At 40°C ambient, power consumption of the ±15V power supply should be limited to 100W (3.3A @ both ±15V) The pressure module should be located as the last module (right-most module in a stack)

Storage Temperature: -40 - 75°C

Humidity: 5 - 95% non-condensing

Dimensions: 52.5 x 125 x 92.3 mm

Mounting: DIN rail
