MMF KS77C100 High Sensitivity Accelerometer (100mV/g, ±60 g, 24000 Hz)

High Sensitivity Accelerometers KS77C100
Output : IEPE
Sensitivity: 100mV/g
Measuring range: ±60 g
Linear frequency range (±3 dB) 24000 Hz
Socket UNF 10-32, axial
Weight: 23g
Connection accessories:
• 009-UNF-UNF-1,5: cable 2 x UNF 10-32; 1.5 m long
• 009-UNF-BNC-1,5: cable UNF 10-32 / BNC; 1.5 m long
• 010-UNF-BNC-5/10: cable UNF 10-32 / BNC; 5 / 10 m long
• 016: Coupler for 2 UNF 10-32 plugs
• 017: Adapter UNF 10-32 / BNC (male)
• 117: Adapter UNF 10-32 / BNC (female)
• 025: Adapter UNF 10-32 / TNC (male)

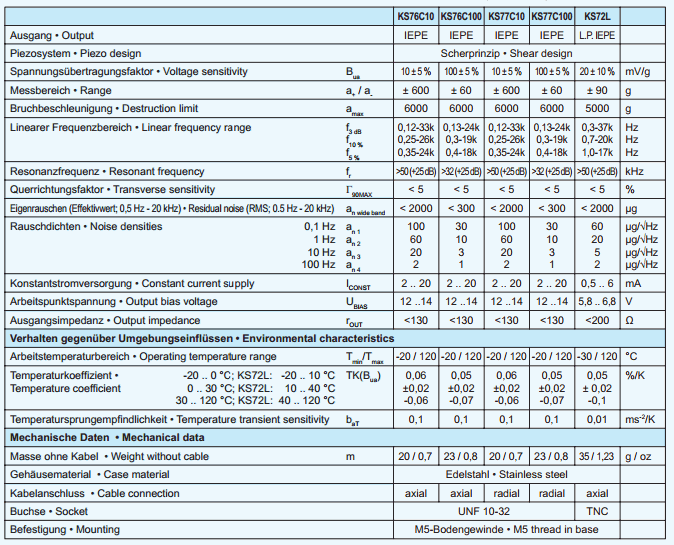

Datasheet
