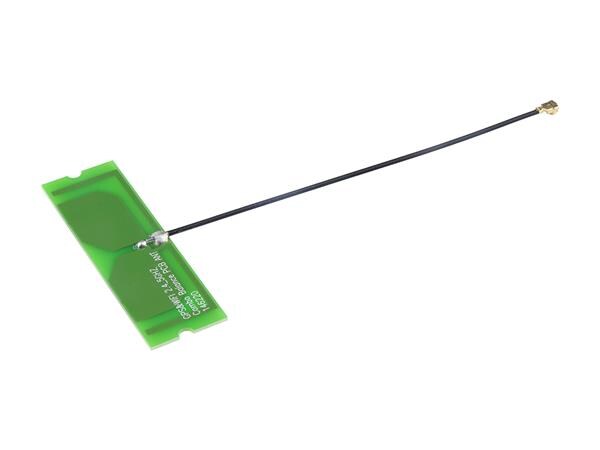

Gain: 2.6 dBi, 3.1 dBi, 3.8 dBi, 4.1 dBi
Style: T-Bar
Width: 16.6 mm
Height: 0.81 mm
Length: 53.5 mm
Impedance: 50 Ohms
Cable Type: 50 mm Coax
Technology: GPS, WiFi
Unit Weight: 1.644 g
Cable Length: 50 mm
For Use With: WiFi Devices, GPS, Cameras, Car Audio
Polarization: Linear
Power Rating: 2 W
Mounting Style: Screw Mount
Number of Bands: 4 Band
Center Frequency: 1575.42 MHz, 1602 MHz, 2483.5 MHz, 2400 MHz, 5850 MHz, 5150 MHz, 4500 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 6 GHz
Minimum Frequency: 1.57542 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: IPEX MHF
Protocol - GPS, GLONASS: GLONASS, GPS
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
