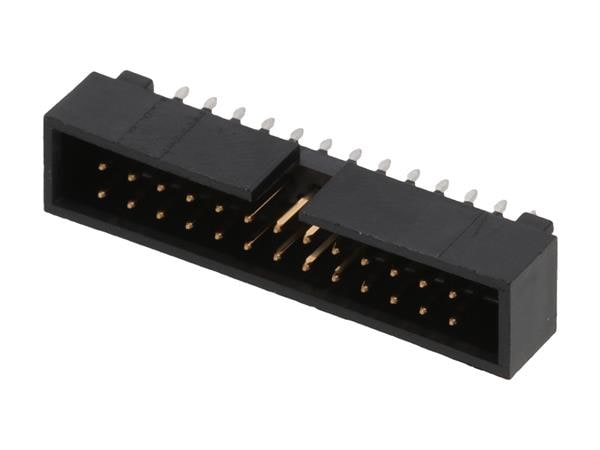

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board, Signal
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 3.076 g
Contact Gender: Pin (Male)
Current Rating: 2.5 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 250 VDC
Contact Plating: Gold
Contact Material: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Mating Post Length: 6.1 mm (0.24 in)
Flammability Rating: UL 94 V-0
Number of Positions: 26 Position
Termination Post Length: 3.43 mm (0.135 in)
Maximum Operating Temperature: + 120 C
Minimum Operating Temperature: - 55 C
