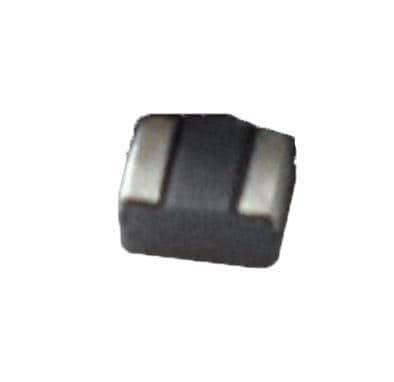

Monolithic Power Systems (MPS) MPL-AT2010-2R2 Power Inductor Low Profile Series, size dimension: 2010, Inductance value: 2.2uH

Name: Monolithic Power Systems (MPS) MPL-AT2010-2R2 Power Inductor Low Profile Series, size dimension: 2010, Inductance value: 2.2uH
Brand: Monolithic Power Systems (MPS)

ManufacturerMonolithic Power Systems (MPS)(View more products from this manufacturer)

ModelMPL-AT2010-2R2

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 1.6 mm

Height: 1 mm

Length: 2 mm

Core Type: Molded

Shielding: Unshielded

Tolerance: 20 %

Inductance: 2.2 uH

Application: Power

Termination: Flexible (Soft)

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: SMD/SMT

Maximum DC Current: 2.2 A

Saturation Current: 2.7 A

Maximum DC Resistance: 137 mOhms

Self Resonant Frequency: 125 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
