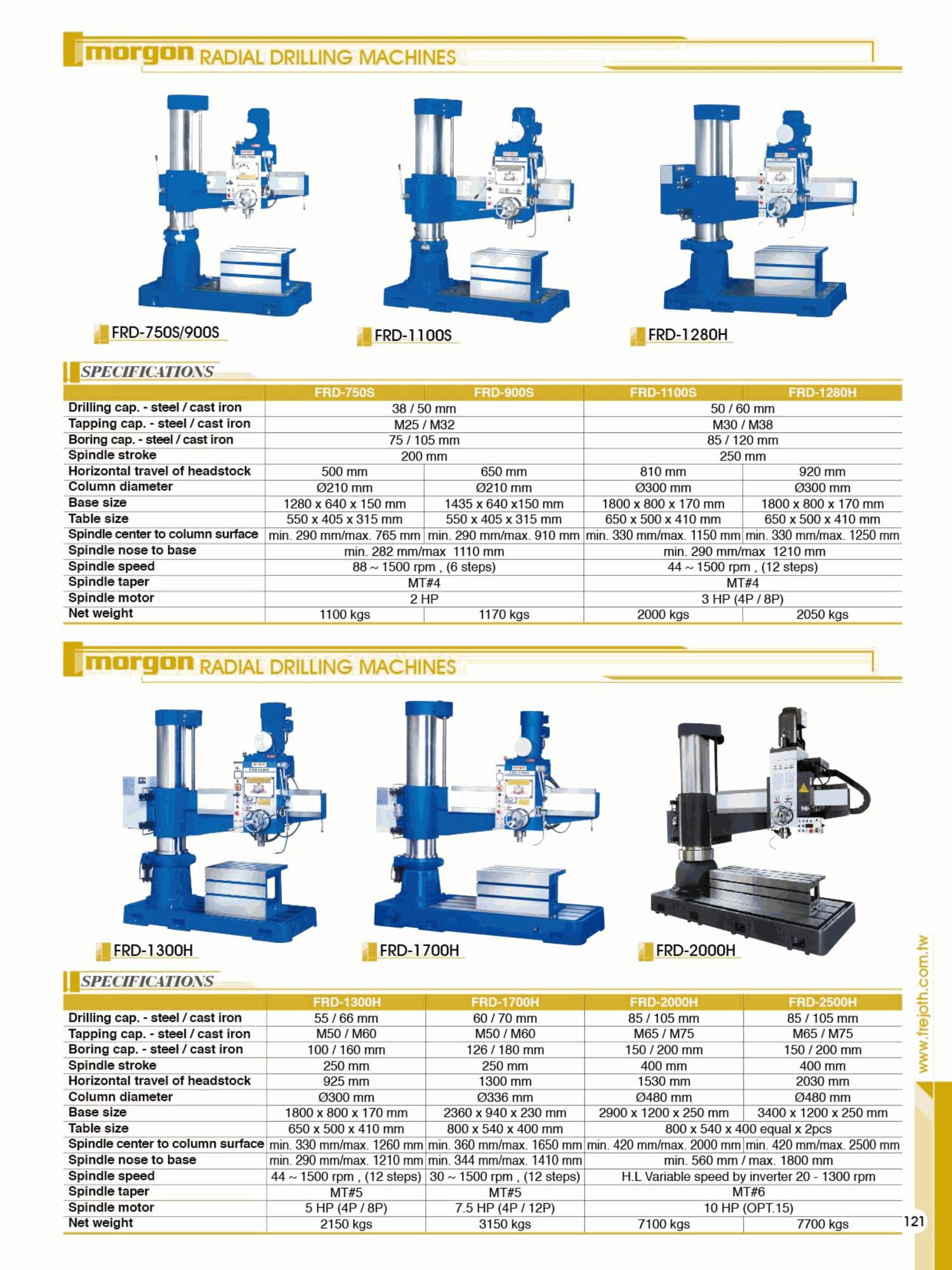

Drilling cap. - steel / cast iron: 50/60 mm
Tapping cap. - steel / cast iron: M30 / M38
Boring cap. - steel / cast iron: 85 / 120 mm
Spindle stroke: 250 mm
Horizontal travel of headstock: 810 mm
Column diameter: Ø300 mm
Base size: 1800 x 800 x 170 mm
Table size: 650 x 500 x 410 mm
Spindle center to column surface: min. 330 mm/max. 1150 mm
Spindle nose to base: min. 290 mm/max. 1210 mm
Spindle speed: 44 ~ 1500 rpm , (12 steps)
Spindle taper: MT#4
Spindle motor: 3 HP (4P/8P)
Net weight: 2000 kgs
