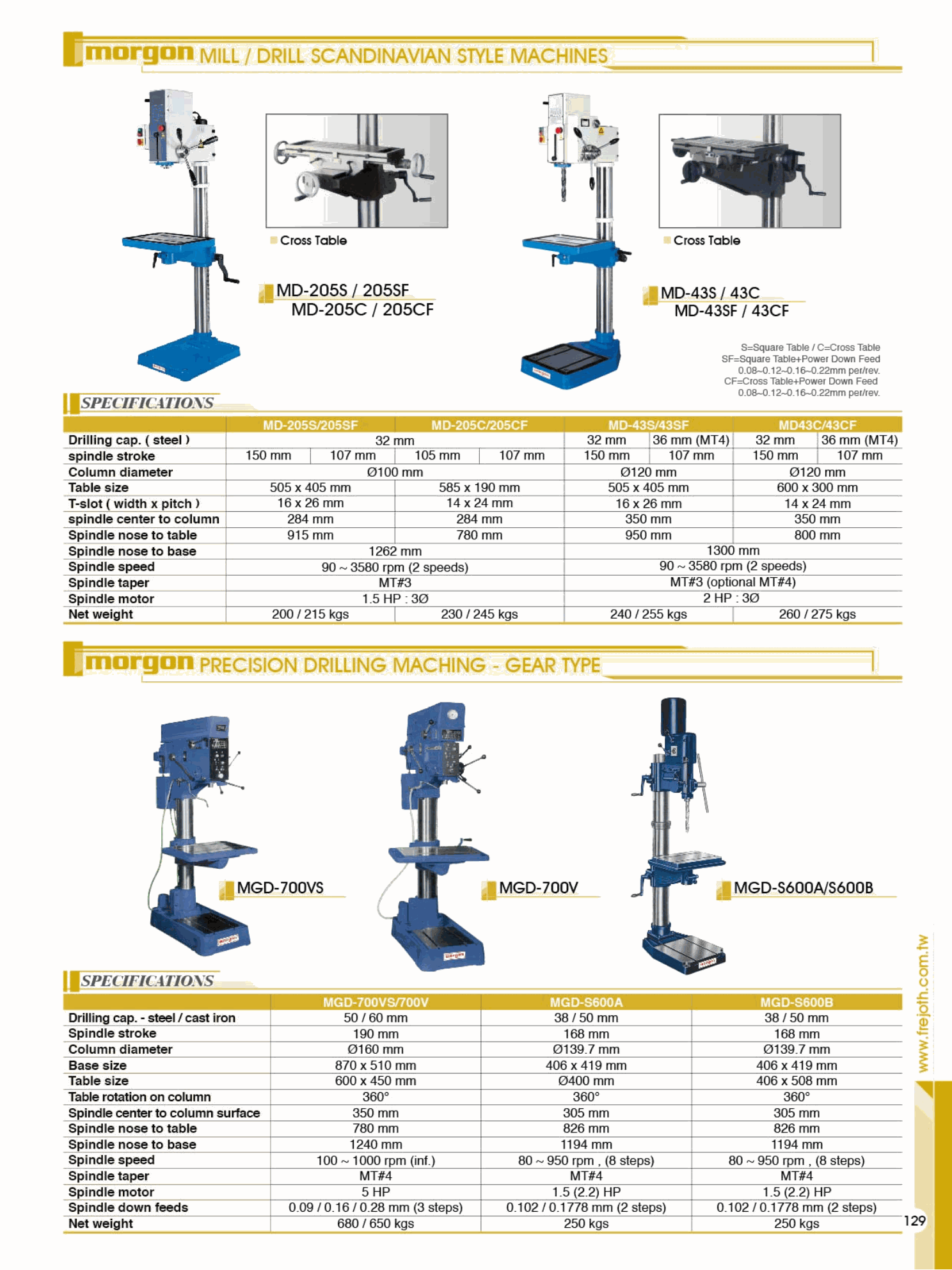

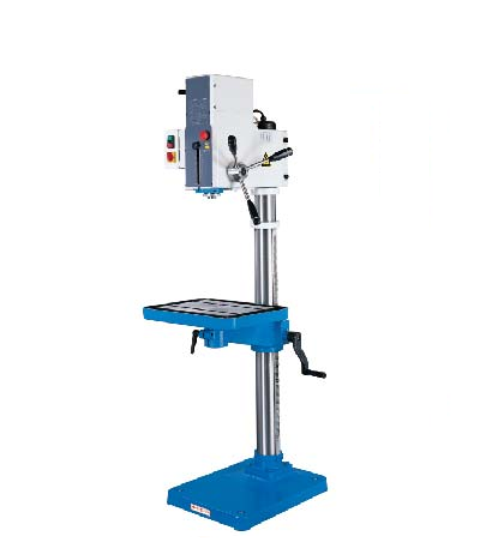

Drilling cap. - steel: 32 mm
Spindle troke: 107 mm
Column diameter: Ø100 mm
Table size: 585 x 190 mm
T-slot (width x pitch): 14 x 24 mm
Spindle center to column: 284 mm
Spindle nose to table: 780 mm
Spindle nose to base: 1262 mm
Spindle speed: 90~3580 rpm (2 speeds)
Spindle taper: MT#3
Spindle motor: 1.5 HP : 3Ø
Net weight: 245 kgs
