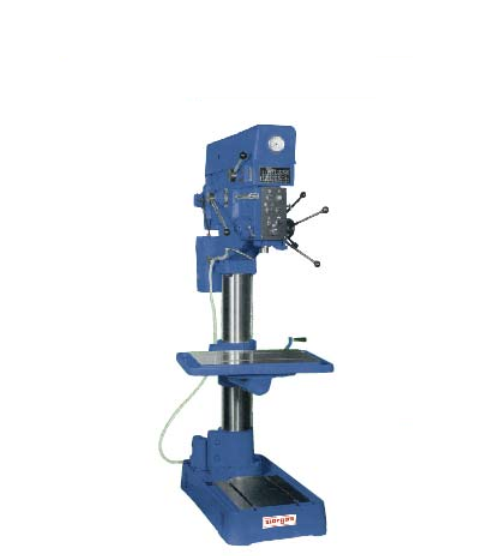

Drilling cap. - steel/cast iron: 50/60mm
Spindle troke: 190 mm
Column diameter: Ø160 mm
Base size: 870 x 510 mm
Table size: 600 x 450 mm
Table rotation on column: 360°
Spindle center to column surface: 350 mm
Spindle nose to table: 800 mm
Spindle nose to base: 1240 mm
Spindle speed: 100~1000 rpm (inf.)
Spindle taper: MT#4
Spindle motor: 5 HP
Spindle down feeds: 0.09 / 0.16 / 0.28 mm (3 steps)
Net weight: 650 kgs

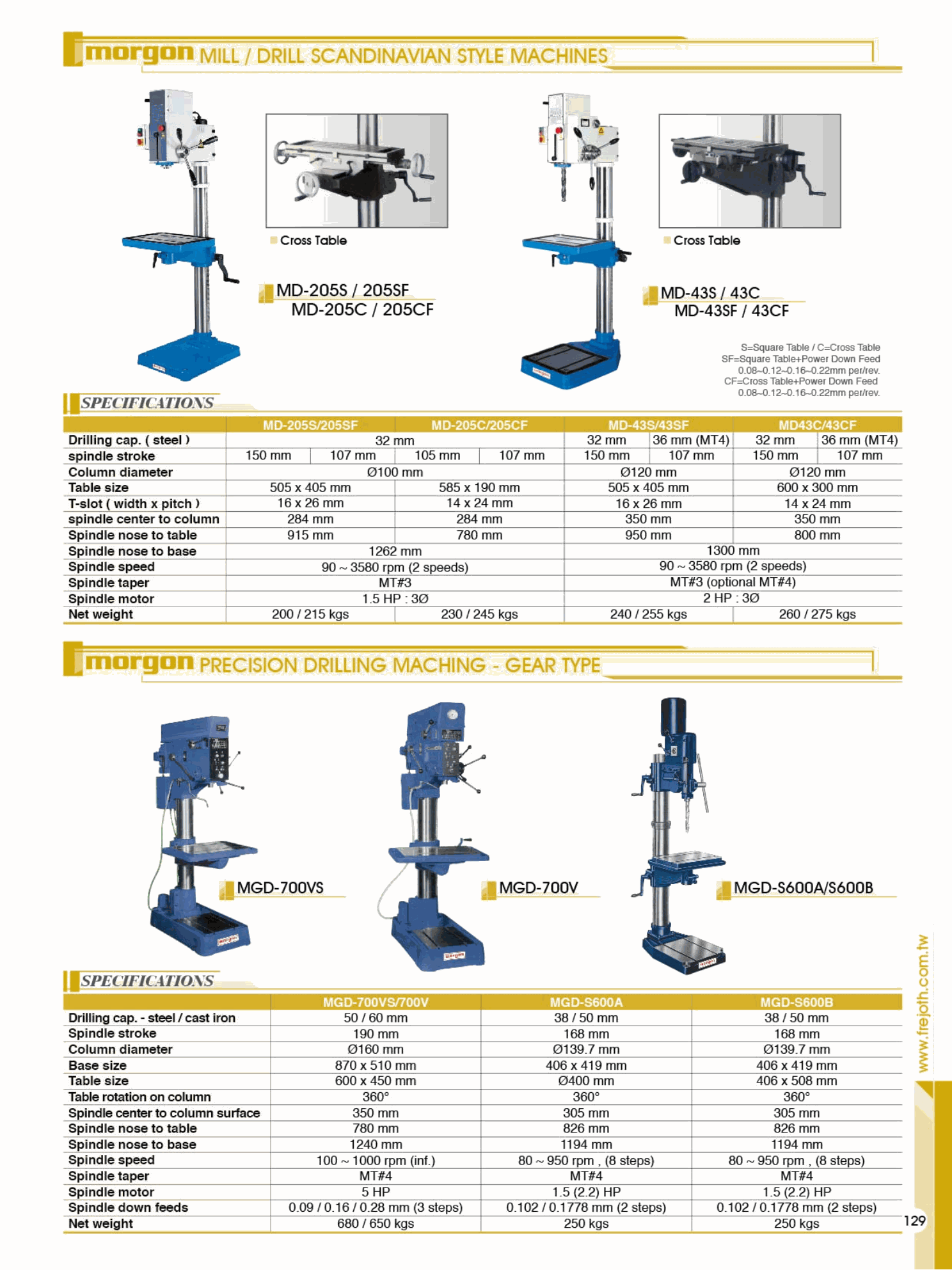

Datasheet
