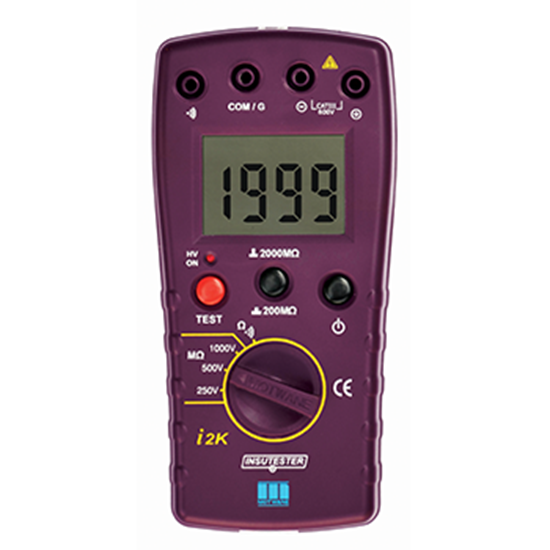

MOTWANE i2K Digital Insulation Tester (200MΩ, 2000MΩ)

Manufacturer: MOTWANE

Model: i2K

Origin: India

Warranty: 12 months

Display : 3 ½ digit LCD

Enclosure Material : ABS casing

Dimensions (W x H x D) : Approx.175 mm x 85 mm x 41mm

Weight : Approx.425gm. (With battery)

Over range indication : Indicated by displaying “1”

Operating Temp. : 0˚C to 50˚C

Storage Temp. : -25˚C to 60˚C

Relative Humidity : 90% RH at 40°C max (non condensing)

Battery : 6 X 1.5V AA cells IEC LR6 Alkaline

Low Battery Indication : “LO BAT” is displayed below 6.1V approx

Insulation Resistance MΩ: 200MΩ; 0.1MΩ; ± (5% ± 5); 230 DC/AC rms 30 sec

2000MΩ; 1MΩ; ± (5% ± 5); 230 DC/AC rms 30 sec

Test Voltage: 250V; ± (10% ± 5); 230 DC/AC rms 30 sec

500V; ± (10% ± 5); 230 DC/AC rms 30 sec

1000V; ± (10% ± 5); 230 DC/AC rms 30 sec

Continuity: 0-19.99Ω; 0.01Ω; ± (3% ± 5); 230 DC/AC rms 30 sec

Standard Accessories: Crocodile Test lead set with 1 meter long; Instruction Manual; Batteries 6x1.5V AA, Alkaline( IE LR6); Calibration certificate

Optional Accessories: Test Lead Set with one end pointed tip and another with 4mm shrounded banana
