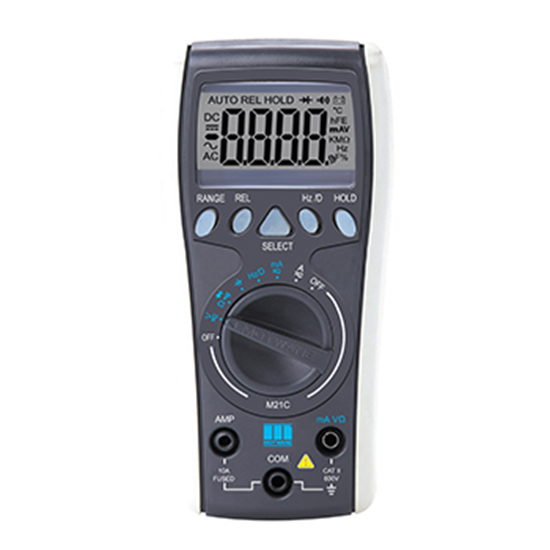

MOTWANE M21C Digital Multimeter

Manufacturer: MOTWANE

Model: M21C

Origin: India

Warranty: 12 months

Display : 2400 Count LCD Display

Polarity : Automatic

Display Update Rate : 3 times per sec. nominal

Sensing : Average sensing calibrated for rms

Dimension (W X H X D) : 63 x 138 x 28 mm approx.

Weight : 180g. approx.

Power Supply : Battery 1.5V x 2 (AAA size or equivalent)

Power Consumption : 1mA Typical

Auto Power OFF : After 30 minutes, idle sleep mode consumption 2.5µA approx.

Operating Temperature : 0 C to 50 C

Storage Temperature : -20 C to 60 C

Relative Humidity : 80% RH at 5 C to 31 C, 50% RH at 31 C to 40 C non-condensing

DC Voltage:

240mV; 0.1mV; 240.0mV; ±(0.5% + 3);1050V DC/AC rms

2.4V; 1mV; 2.400V; ±(0.5% + 3); 1050V DC/AC rms

24V; 10mV; 24.00V; ±(0.5% + 3); 1050V DC/AC rms

240V; 100mV; 240.0V; ±(0.5% + 3);1050V DC/AC rms

1000V; 1V; 1000V; ±(0.8% + 3); 1050V DC/AC rms

AC Voltage:

2.4V; 1mV; 2.400V; ±(1.0% + 5);1050V DC/AC rms

24V; 10mV; 24.00V; ±(1.0% + 5); 1050V DC/AC rms

240V; 100mV; 240.0V; ±(1.0% + 5); 1050V DC/AC rms
Resistance Rage:

750V; 1V; 750V; ±(1.2% + 8); 250V DC/AC rms
240Ω; 0.1Ω; 240.0Ω; ±(0.5 % + 3); 250V DC/AC rms

2.4KΩ; 1Ω; 2.400KΩ; ±(0.5 % + 3); 250V DC/AC rms

24KΩ; 10Ω; 24.00KΩ; ±(0.5 % + 3); 250V DC/AC rms

240KΩ; 100Ω; 240.0KΩ; ±(0.5 % + 3); 250V DC/AC rms

2.4MΩ; 1KΩ; 2.400MΩ; ±(1.5 % + 3); 250V DC/AC rms

24MΩ; 10KΩ; 24.00MΩ; ±(3.5 % + 5); 250V DC/AC rms
Diode: 1.5V; 1mV; 1.52VDC; 250V DC/AC rms

Continuity: 240Ω; 0.1Ω, tiếng píp kêu khi < 50 Ω

Capacitance:

2.5nF; 0.001nF; 2.500nF; ±(5.0 % + 50), 250V DC/AC rms

25nF; 0.01nF; 25.00nF; ±(5.0 % + 10), 250V DC/AC rms

250nF; 0.1nF; 250.0nF; ±(5.0 % + 10), 250V DC/AC rms

2.5μF; 1nF; 2.500μF; ±(5.0 % + 10), 250V DC/AC rms

25μF; 10nF; 25.00μF; ±(5.0 % + 10), 250V DC/AC rms
Frequency:

5Hz; 0.001Hz ; 5.000Hz; ±(0.3 % + 3), 250V DC/AC rms

50Hz; 0.01Hz; 50.00Hz; ±(0.3 % + 3), 250V DC/AC rms

500Hz; 0.1Hz; 500.0Hz; ±(0.3 % + 3), 250V DC/AC rms

5KHz; 1Hz; 5.000KHz; ±(0.3 % + 3), 250V DC/AC rms

50KHz; 10Hz; 50.00KHz; ±(0.3 % + 3), 250V DC/AC rms

500KHz; 100Hz; 500.0KHz; ±(0.3 % + 3), 250V DC/AC rms

5MHz; 1KHz; 5.000MHz; ±(0.3 % + 3) , 250V DC/AC rms
Duty Cycle: 0.1%- 99.9%; 0.1%; 99.9%; ±(0.5%+20Digit); 250V DC/AC rms

DC current:

24mA; 0.01mA; 24.00mA; ±(1.0 % + 5), 250mA/250V DC/AC fast blow, Ceramic Fuse

240mA ;0.1mA ;240.0mA; ±(1.2 % + 5)250mA/250V DC/AC fast blow, Ceramic Fuse

2.4A 1mA; 2.400A; ±(2.0 % + 5);10A/250V DC/AC fast blow, Ceramic Fuse

10A; 10mA; 10.00A; ±(2.0 % + 5); 10A/250V DC/AC fast blow, Ceramic Fuse
AC Current:

24mA; 0.01mA; 24.00mA; ±(1.0 % + 5);cầu chì ngắt nhanh 250mA/250V DC/AC fast blow, Ceramic Fuse

240mA; 0.1mA; 240.0mA; ±(1.2 % + 5);cầu chì ngắt nhanh 250mA/250V DC/AC fast blow, Ceramic Fuse

2.4A; 1mA; 2.400A; ±(2.0 % + 5); cầu chì ngắt nhanh 10A/250V DC/AC fast blow, Ceramic Fuse

10A; 10mA; 10.00A; ±(2.5 % + 5); cầu chì ngắt nhanh 10A/250V DC/AC fast blow, Ceramic Fuse
