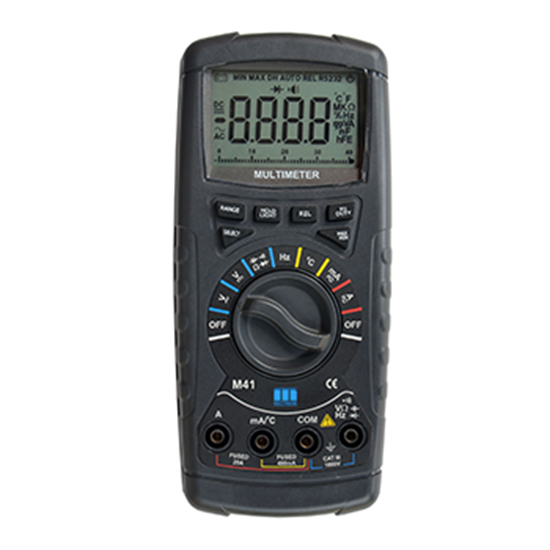

MOTWANE M41 Digital Multimeter

Manufacturer: MOTWANE

Model: M41

Origin: India

Warranty: 12 months

Dimension(WxHxD): 94 x 205 x 36 mm approx

Weight: 450g approx

Operating Temperature : 0°C to 50°C

Storage Temperature : - 20°C to 60°C

Relative Humidity : 80% RH @ 5 C to 31 C , 50% RH @ 31 C to 40 C Non-condensing

Power Supply : Battery 1.5V AAA size x 2 Nos.

Power Consumption : 3.5 mA typical.

Low Battery Indication : ‘LO BAT’ is displayed below 2.4V approx

Fuse protection for ‘mA/°C’Input Terminal : 0.5A/250V fast blow type Ceramic fuse.

Fuse protection for 10A Input Terminal 20A/250V fast blow type Ceramic fuse

DC Voltage:

400mV; 0.1mV; 400.0mV;±(0.5%+3); 1050V DC/AC rms

4V; 1mV; 4.000mV;±(0.5%+3); 1050V DC/AC rms

40V; 10mV; 40.00mV;±(0.5%+3); 1050V DC/AC rms

400V; 100mV; 400.0mV;±(0.5%+3); 1050V DC/AC rms

1000V; 1V; 1000mV;±(0.58+3); 1050V DC/AC rms

AC Voltage:

4V; 1mV; 4.000V;±(1%+5); 1050V DC/AC rms

40V; 10mV; 40.00V;±(1%+5); 1050V DC/AC rms

400V; 100mV; 400.0V;±(1%+5); 1050V DC/AC rms

750V; 1V; 750V;±(1.2%+8); 1050V DC/AC rms

DC Current Range:

40mA; 0.01mA; 40.00mA; ±(1%+5), 0.5A/250V DC/AC fuse protection

400mA; 0.1mA; 400.0mA; ±(1%+5),0.5A/250V DC/AC fuse protection

4A; 1mA; 4.000A; ±(1%+5), 20A/250V DC/AC fuse protection

20A; 10mA; 20.00mA; ±(1%+5), 20A/250V DC/AC fuse protection

AC Current Range :

40mA; 0.01mA; 40.00mA; ±(1.2%+5), 0.5A/250V DC/AC DC/AC fuse protection

400mA; 0.1mA; 400.0mA; ±(1.2%+5), 0.5A/250V DC/AC fuse protection

4A; 1mA; 4.000A; ±(1.2%+5), 20A/250V DC/AC fuse protection

20A; 10mA; 20.00mA; ±(1.2%+5),20A/250V DC/AC fuse protection

Resistance Range:

400 Ω; 0.1 Ω; 400.0 Ω; ±(0.5%+3) , 440V DC/AC rms

4 KΩ; 1 Ω; 4.000 KΩ; ±(0.5%+3) , 440V DC/AC rms

40 KΩ; 10 Ω; 40.00 KΩ; ±(0.5%+3) , 440V DC/AC rms

400 KΩ; 100 Ω;400.0 KΩ; ±(0.5%+3) , 440V DC/AC rms

4 MΩ; 1KΩ; 4.000 MΩ; ±(1%+5) , 440V DC/AC rms

40 MΩ; 10 KΩ; 40.00 MΩ; ±(3%+5) , 440V DC/AC rms

Capacitance Range:

40nF; 0.01nF; 39.99nF; ±(3%+10) , 440V DC/AC rms

400nF; 0.1nF; 399.9nF; ±(3%+10) , 440V DC/AC rms

4µF; 1nF; 3.999µF; ±(3%+10) , 440V DC/AC rms

40µF; 10nF; 39.99µF; ±(3%+10) , 440V DC/AC rms

400µF; 100nF; 399.9µF; ±(3%+10) , 440V DC/AC rms

4000µF; 1µF; 3999µF; ±(5%+20) , 440V DC/AC rms

Frequency Range:

10Hz; 0.001Hz; 9.999Hz; ±(0.1%+3); 440DC/AC rms

100Hz; 0.01Hz; 99.99Hz; ±(0.1%+3); 440V DC/AC rms

1KHz; 0.1Hz; 999.9Hz; ±(0.1%+3); 440V DC/AC rms

10KHz; 1Hz; 9.999KHz; ±(0.1%+3); 440V DC/AC rms

100KHz; 10Hz; 99.99KHz; ±(0.1%+3); 440V DC/AC rms

1000KHz; 100Hz; 999.9KHz; ±(0.1%+3); 440V DC/AC rms

10MHz; 1KHz; 9.999MHz; ±(0.1%+3); 440V DC/AC rms

Diode Test: 4V; 1mV, ≤2.85 VDC ; 0.8A

Contiguity Test: 400.0Ω; 0.1Ω; tiếng píp tại <60Ω

Duty Cycle Measurement: 0.1-99.9%; 0.1%; ±(0.5%+3); 440V DC/AC rms

K-type Thermalcouple : -20°C đến 1200°C; ±(1%+20)°C

Accessories: pair of test leads, User Manual, Battery Installed

Optional Accessories: Pair of test leads, K type thermocouple
