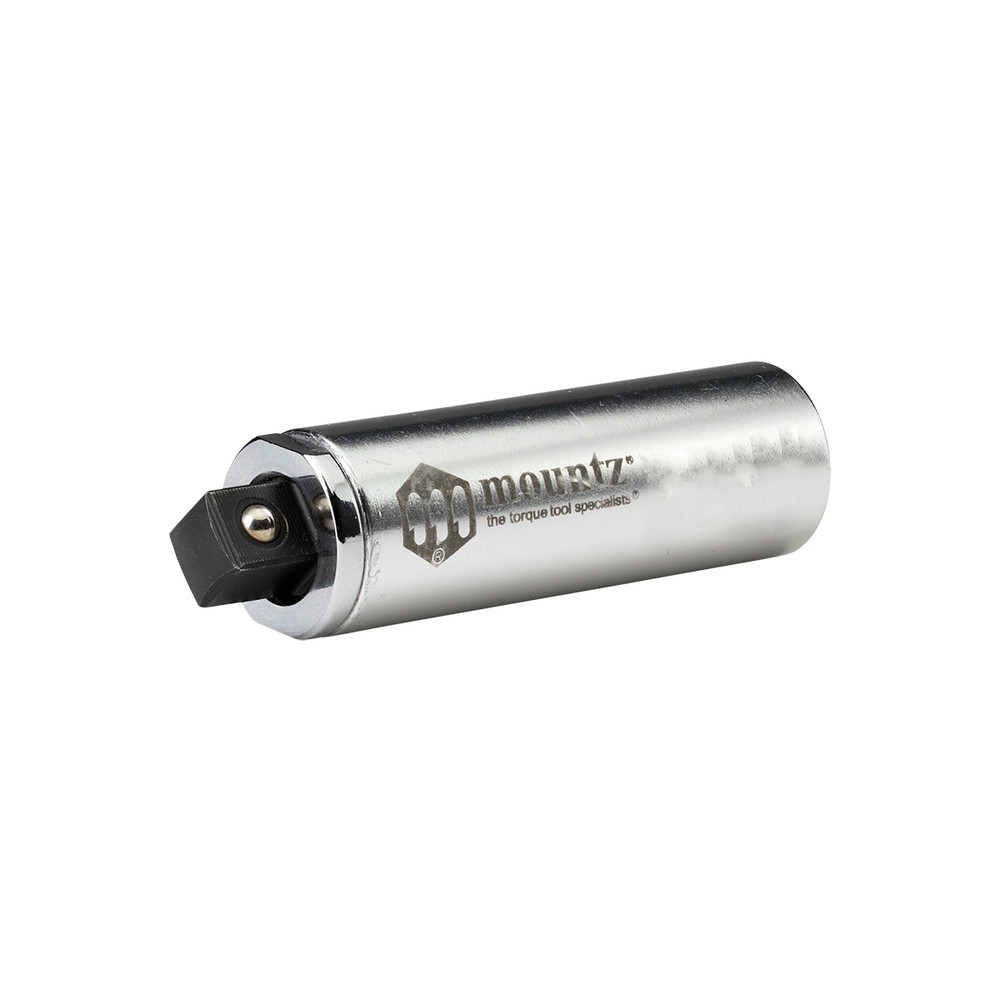

Input Driver type: 3/8” F/Sq
Output Driver type: 3/8” M/Sq
Torque range : 1 - 5 lbf.in/ 11.3 - 56.5 cN.m
L= 75 mm
Weight: 93 g
FEATURES:
Designed to be used “in-line” to limit torque for hand (static) applications. Can also be used as an overload protection device on most applications where measuring a static overload is needed. Provides accurate process control as the unit prevents a fastener or bolt from being under and over tightened.
Repeatability within +/- 6% of pre-set torque value.
Various models that range from 1 to 85 lbf.in.
Designed to be used “in-line” to limit torque for hand (static) applications. For low torque applications.
Can also be used as an overload protection device on most applications where measuring a static overload is needed.
The rotary clucth mechanism ‘slips free’ when the pre-set torque value is reached, eliminating overtightening. The mechanism then automatically resets.
Pre-set using a torque analyzer.
Bi-directional operation and are calibrated in either the CW or CCW direction.
Lighweight and easy-to-use.
Non-length dependent. Bi-directional operation and are calibrated in either the CW or CCW direction.
