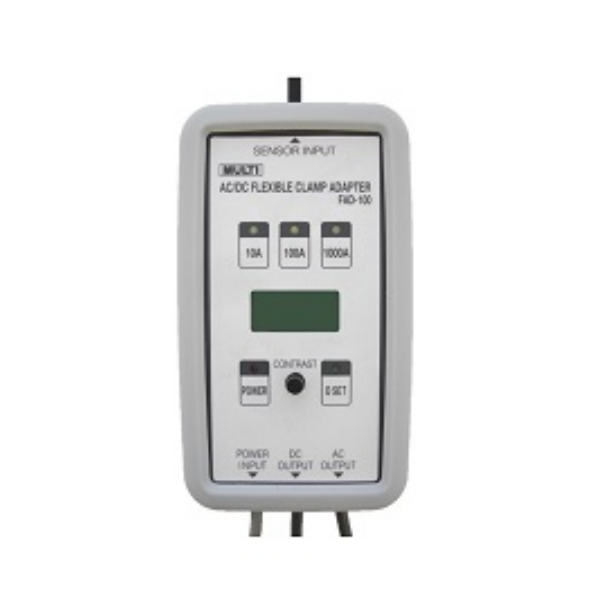

MULTI FAD-100 AC/DC Flexible Leakage/Line Current Probe (10A/100A/1000A)

Inside diameter of CT: φ200mm

Measuring Range: AC/DC10A/100A/1000A(AC 50/60 Hz & DC)

Sampling Rate: 2 Times/sec

AC/DC Output Voltage: 1.5V / F.S. of Respective Range

Accuracy: ±3% rdg ±10dgt

Power Supply Voltage: DC 12V

Current Consumption: Approx. 100mA

Applicable Circuit Voltage: Less than AC/DC 600V (insulated coating wire)

Withstanding Voltage: AC2200V/1 minute

Ambient Operating Temperature: 0℃~40℃ (<85%RH, w/o condensation)

Ambient Storage Temperature: -10℃~60℃ (<70%RH, w/o condensation)

Dimension of Controller: 135 x 76 x 35mm

Weight CT: Approx. 270g

Controller: 250g
