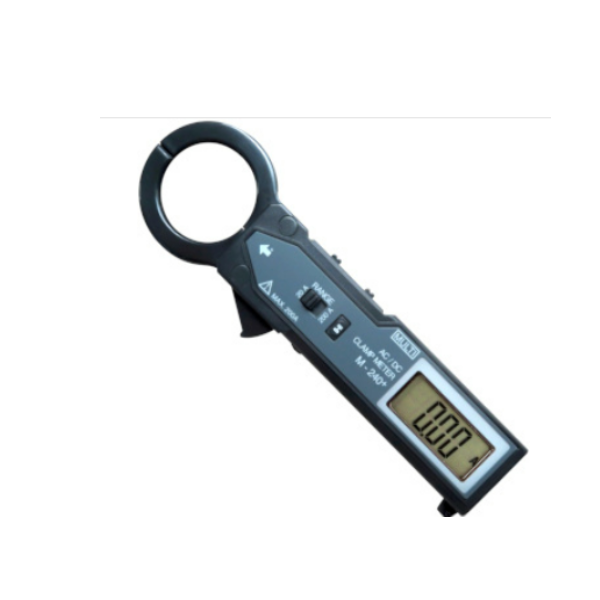

MULTI M-240+ AC/DC Mini Digital Clamp Tester (30mmφCT, 20A/200A)

Display: 3.5 digit LCD, max. reading of 1999

Measuring ranges: AC/DC 20A/200A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Range/Resolution/Accuracy:

DC 20 A/0.01A/±1.5％rdg±3dgt

DC200 A/0.1A/±2.0％rdg±3dgt(0~150.0A)

DC200 A/0.1A/±3.0％rdg±3dgt(150.1~199.9A)

AC 20 A/0.01A/±1.5％rdg±5dgt(50/60Hz)

AC 20 A/0.01A/±2.0％rdg±5dgt(40～49Hz/61～500Hz)

AC 200 A/0.1A/±2.0％rdg±5dgt(2.0~150.0A 50/60Hz)

AC 200 A/0.1A/±2.5％rdg±5dgt(2.0~150.0A 40～49Hz/61～500Hz)

AC 200 A/0.1A/±3.0％rdg±5dgt(150.1~199.9A 50/60Hz)

AC 200 A/0.1A/±4.0％rdg±5dgt(150.1~199.9A 40～49Hz/61～500Hz)

Inside diameter of CT: φ30mm

Withstanding voltage: AC 2000V/1 minute

Sampling rate: 2 times/sec

Operating temperature: -10～50℃, < 80%RH (without condensation)

Power supply: LR-44 battery×2

Dimension: 44(W)×148(H)×20(D)mm

Weight: Approx. 100g

Accessories: Soft case, Batteries, Instruction manual
