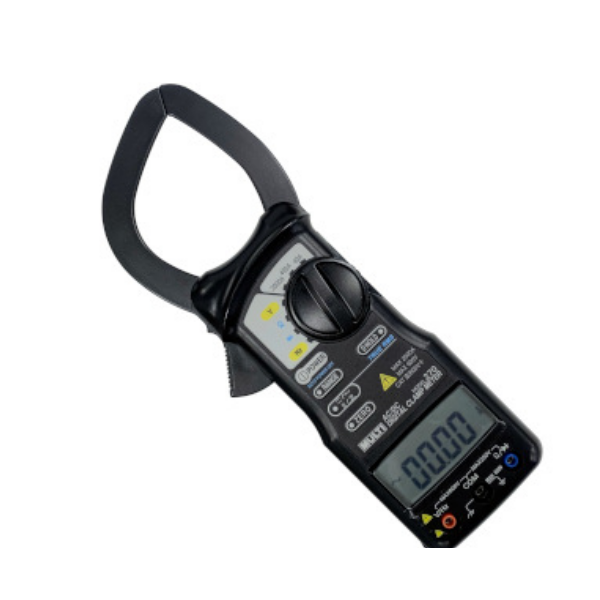

MULTI M-270 AC/DC Digital Clamp Tester (40A/400A/2000A, TrueRMS, 55mmφ)

Display: 3.5 digit LCD, max. reading of 3999

Accuracy: (23℃±5℃, 80%RH or less)

Function/Range/Resolution/Accuracy/Max. input

ACA(50/60Hz) DCA Manual range/40A/0.01A/±2%rdg±8 dgt/AC/DC2000A

ACA(50/60Hz) DCA Manual range/400A/0.1A/±1.5%rdg±8 dgt/AC/DC2000A

ACA(50/60Hz) DCA Manual range/2000A/1A/±1.5%rdg±8 dgt/AC/DC2000A

ACV(50/60Hz) DC V Auto/Manual range/400mV/0.1mV/±1.2%rdg±8 dgt/AC/DC 600Vrms

ACV(50/60Hz) DC V Auto/Manual range/4V/0.001V/±1.2%rdg±8 dgt/AC/DC 600Vrms

ACV(50/60Hz) DC V Auto/Manual range/40V/0.01V/±1.2%rdg±8 dgt/AC/DC 600Vrms

ACV(50/60Hz) DC V Auto/Manual range/400V/0.1V/±1.2%rdg±8 dgt/AC/DC 600Vrms

ACV(50/60Hz) DC V Auto/Manual range/600V/1V/±1.2%rdg±8 dgt/AC/DC 600Vrms

Frequency(Hz) Auto range/100Hz/0.01Hz/±0.5%rdg±3 dgt/AC/DC 600Vrms

Frequency(Hz) Auto range/1000Hz/0.1Hz/±0.5%rdg±3 dgt/AC/DC 600Vrms

Frequency(Hz) Auto range/10kHz/0.001kHz/±0.5%rdg±3 dgt/AC/DC 600Vrms

Frequency(Hz) Auto range/100kHz/0.01kHz/±0.5%rdg±3 dgt/AC/DC 600Vrms

Frequency(Hz) Auto range/1000kHz/0.1kHz/±0.5%rdg±3 dgt/AC/DC 600Vrms

Resistance(Ω) Auto/Manual range/400Ω/0.1Ω/±1.5%rdg±8 dgt/250 Vrms

Resistance(Ω) Auto/Manual range/4kΩ/0.001kΩ/±1.5%rdg±8 dgt/250 Vrms

Resistance(Ω) Auto/Manual range/40kΩ/0.01kΩ/±1.5%rdg±8 dgt/250 Vrms

Resistance(Ω) Auto/Manual range/400kΩ/0.1kΩ/±1.5%rdg±8 dgt/250 Vrms

Resistance(Ω) Auto/Manual range/4000kΩ/1kΩ/±1.5%rdg±8 dgt/250 Vrms

Resistance(Ω) Auto/Manual range/40MΩ/0.01MΩ/±3%rdg±10 dgt/250Vrms

Jaw opening capability: 55mmφ

Sampling: 2 times/sec

Withstanding Voltage: AC 5500V 1 minute max. (Between the core of CT and outer case)

Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )

Storage Temperature: -10℃ to 60℃, 70%RH max. ( Without condensation )

Auto power off: Approx. 10 minutes later after power on

Power supply: 1.5V (AM-4, LR03 or AAA)×2

Power consumption: 25mW

Battery life: Approx. 90 hours continuous

Size: 85(W)×240(H)×34(D)mm

Weight: Approx. 350g

Accessories:

Hard carrying case:1

Instruction manual:1

Test lead:1set

Batteries:2
