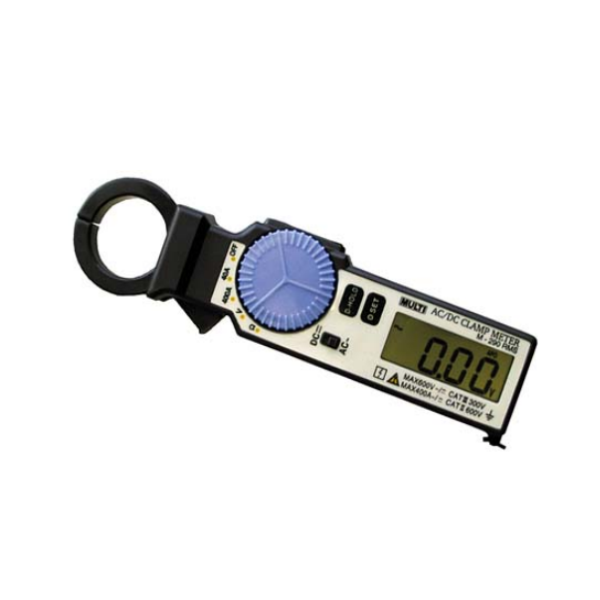

MULTI M-290RMS Mini Digital Clamp Tester (True RMS, 40A/400A, 60V/600V, 1000Ω)

Withstanding Voltage: AC 3700V 1 minute max.

Storage Temperature: -10℃ ～ 60℃ < 70%RH( without condensation )

Accuracy: (23℃±5℃, 80%RH or less)

Range/Resolution/Accuracy:

AC 40A/0.01A/±1.5%rdg±5dgt(50/60Hz)

AC 400A/0.1A/±1.5%rdg±8dgt(50/60Hz)

DC 40A/0.01A/±1.5%rdg±3dgt

DC 400A/0.1A/±1.5%rdg±5dgt

AC 60V/600V/0.01V/±1.0%rdg±8dgt

DC 60V/600V/0.01V/±1.0%rdg±6dgt

1000Ω/0.1Ω/±1.5%rdg±8dgt

Operating Temperature: 0℃ ～ 40℃ < 80%RH (without condensation )

Power supply: 1.5V (AM-4, LR03 or AAA)×3

Power consumption: Approx. 9mA

Weight: Approx. 135g

Measuring Range:

AC Current:40A/400A

DC Current:40A/400A

AC Voltage:60V/600V

DC Voltage:60V/600V

Resistance:1000Ω

Jaw opening capability: 30mmφ

Limitation of circuit voltage: Less than AC/DC 600V

Size: 45(W)×180(H)×24(D)mm

Accessories:

Soft case: 1

Instruction manual: 1

Test lead: 1

Batteries: 2

Crest factor: < 2.5

Display: 3.5 digit LCD max. reading of 3999

Sampling time: 2 times/sec

Battery life: Approx. 90 hours continuous
