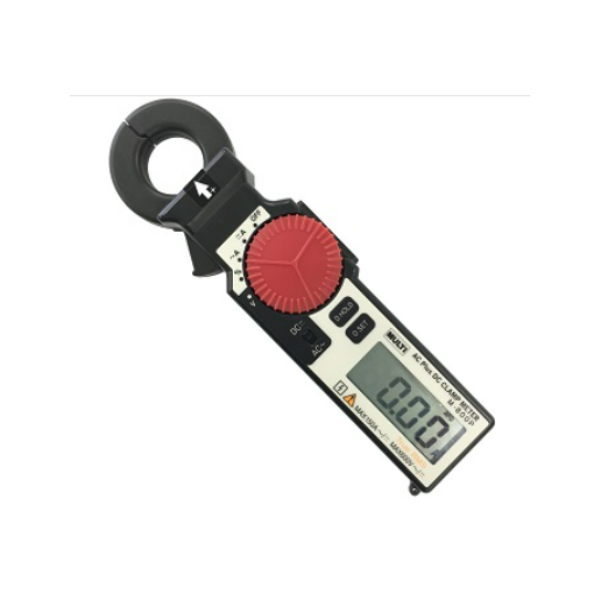

MULTI M-800P Clamp Tester (15A/150A, 150V/600V)

Measuring Function: AC/DC Current (RMS), AC/DC Voltage, DC Current in AC Circuit

CT Inside Diam.: φ23mm

Measuring Range:

AC Current:15A/150A

DC Current:15A/150A

AC Voltage:150V/600V

DC Voltage:150V/600V

DC Current in AC: % Display

Accuracy:

AC Current (15A): ±1.0%rdg±5dgt

AC Current (150A): ±2.0%rdg±5dgt

DC Current (15A): ±1.0%rdg±5dgt

DC Current (150A): ±2.0%rdg±8dgt

AC/DC Voltage: ±1.0%rdg±5dgt

Other Functions: Data Hold, Auto Power Off, One Push 0Adjust.

Power Supply: AAA Size Alkaline Battery × 3

Dimension: W48×H178×D24mm

Weight: Approx. 120g

Accessories:

Soft case:1

Instruction manual:1

Test lead:1

Batteries:2
