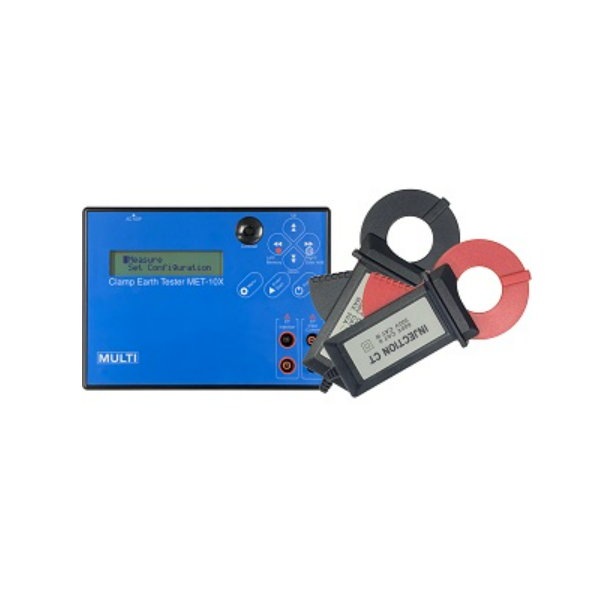

MULTI MET-10X Clamp Earth Tester (0.1~1000 Ω)

Range: 10 Ω

Measurement range: 0.10～10.00 Ω

Resolution: 0.01 Ω

Accuracy: 0.10～1.00 Ω：±0.10 Ω

1.00～10.00 Ω：±0.50 Ω

Range: 100 Ω

Measurement range: 10.0～100.0 Ω

Resolution: 0.1 Ω

Accuracy: 10.0～50.0 Ω：±2.0 Ω

50.0～100.0 Ω：±5.0 Ω

Range: 1000 Ω

Measurement range: 100.0～500.0 Ω

Resolution: 0.1 Ω

Accuracy: 100.0～200.0 Ω：±5.0 Ω

200.0～300.0 Ω：±20.0 Ω

300.0～500.0 Ω：±30.0 Ω

Range: 1000 Ω

Measurement range: 500.0～1000 Ω

Resolution: 1 Ω

Accuracy: 500～800 Ω：±50 Ω

800～1000 Ω：±80 Ω

AC current measurement (23℃ ±5℃, 80 %RH or less):

Range : 200 mA

Measurement range : 0.0~200 mA

Resolution : 0.1 mA

Accuracy : 3 %rdg ±8 dgt

Range : 2000 mA

Measurement range : 200~2000 mA

Resolution : 1 mA

Accuracy : 2 %rdg ±8 dgt

Range : 20 A

Measurement range : 2.00~20 A

Resolution : 0.01 A

Accuracy : 2 %rdg ±8 dgt

Measuring CT: φ34 mm with 2.5 m lead

Storage Temperature: -10℃～60℃, < 80 %RH (without condensation)

Operating Temperature: 0℃～40℃, < 85 %RH (without condensation)

Power supply: AA alkaline battery LR6×4/ AC adapter (US type)

Power consumption: Approx. 160 mA When battery voltage 6 V
