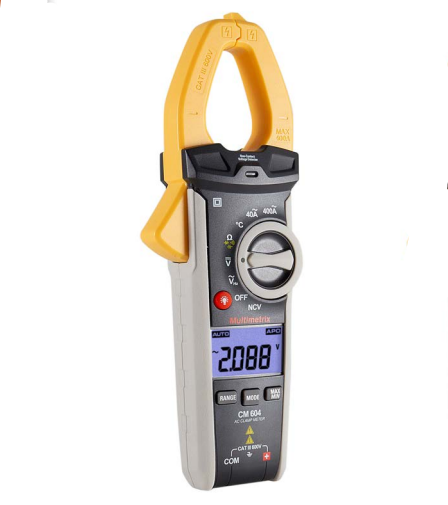

Multimetrix CM 604 Clamp Multimeter (AC 400A)

MEASURING SPECIFICATIONS

AC Voltage: 4.000 V/ 40.00 V / 400.0 V/ 600 V

DC Voltage: 400.0 mV/ 4.000 V/ 40.00 V / 400.0 V/ 600 V

AC current: 40.00 A / 400.0 A

Resistance: 400.0 Ω/ 4.000 kΩ /40.00 kΩ/400.0 kΩ/ 4.000 MΩ /40.00 MΩ

Capacitance: 4.000 nF/ 40.00 nF/ 400.0 nF/ 4.000 µF/ 40.00 µF/ 400.0 µF/ 4.000 mF

Frequency: 4.000 Hz/ 40.00 Hz/ 400.0 Hz/ 4.000 kHz/ 10.00 kHz

Temperature: -18 to 1000°C

GENERAL SPECIFICATIONS

Diode: Test current approximately 1 mA , open circuit voltage of 2 V typical

Continuity test: Audible signal if the resistance is <50 Ω

Display: 4000 count LCD

Measurement rate: 3 readings per second

Input Impedance: >10 MΩ AC and DC Voltage

AC Voltage Bandwidth: 50 Hz to 1 kHz

AC Current Bandwidth: 50 to 60 Hz

Operating Environment: 5 to 40°C (41 to 104°F)

Storage Environment: -10 to 50°C (14 to 122°F)

Operating Humidity: Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)

Storage Humidity: <80%

Operating altitude: 2000 meters (7000 ft) maximum

Dimensions/ Mass: 154x74x43mm / Approx. 210g (without batteries)

Clamping capacity: Approx. 30 mm in diameter

Safety: For indoor use

Class 2, double insulation

Complies with IEC/EN 61010-2-033 or BS EN 61010-2-033, IEC/EN 61010-032 or BS EN 61010-032 and IEC/EN 61010-031 or BS EN 61010-031 for measurement category III600V, pollution degree 2.

Electromagnetic compatibility EMC: Complies with standard IEC/EN 61326-1 or BS EN 61326-1

Accessories supplied

1 set of cables with Ø2 mm bi-mode test probes, CAT II / CAT III-IV

• 1 wire-K thermocouple

• 1 adapter: K Tc/ Ø4 male safety banana connectors

• 1 bag

• 1 screen-printed cardboard box without hook

• 3 x 1.5V batteries

Manual
