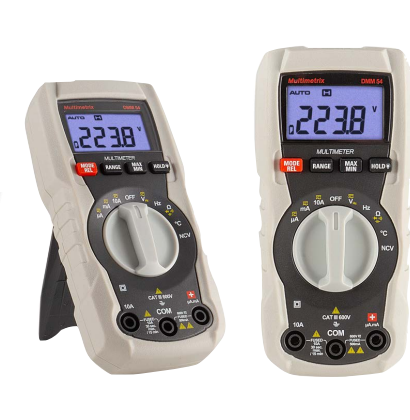

Multimetrix DMM 54 Compact digital multimeter (600V, 10A)

Display: 4.000 counts, backlit

Type of measurement: 3 measurements/ s

IDC

Ranges: 400 µA/4.000µA/40mA/400mA/4A/10A

Best accuracy: 1% of reading + 5 cts

Best resolution: 0.1 µA

IAC

Ranges: 400µA/4000µA/40mA/400mA/4A/10A (50 Hz - 400 Hz)

Best accuracy: 1% of reading + 5 cts from 5% to 100% of range

Best resolution: 0.1 µA

VDC

Ranges: 400mV/4V/40V/400V/600 V

Best accuracy: 0.5% of reading + 8 cts

Best resolution: 0.1 mV

VAC

Ranges: 4V/40V/400V/600V (50 Hz - 1 kHz)

Best accuracy: 1.2% of reading + 3 cts from 5% to 100% of range

Best resolution: 0.001 V

NCV (EF): Yes

Resistance

Ranges: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40 MΩ

Best accuracy: 1.2% of reading + 5 cts

Best resolution: 0.1 Ω

Continuity (with buzzer): Yes (< 50 Ω)

Diode test: Yes

Electrical frequency (V): 4Hz/40Hz/400Hz/4kHz/10kHz (V > 15V)

Electronic frequency (V): 2.000 Hz .. 10 MHz

Capacitance: 4nF/40nF/400nF/4µF/40 µF/400 µF/4 mF

Temperature: - 18 °C … + 1000 °C (Type K thermocouple) 0 … 1832 °F

Range selection: Automatic / Manual

Other features: Min/Max / Data Hold / REL Automatic power-off (15 min.),deactivatable

Safety: 600 V CAT III

Dimensions / weight: 154x74x43mm/ 210 g

Accessories supplied:

1 set of cables with Ø2 mm bi-mode test probes, CAT II / CAT III-IV

1 Tc-K wire thermocouple

1 adapter: Tc-K/Ø4 male safety banana connectors

2x1.5 V AAA batteries
