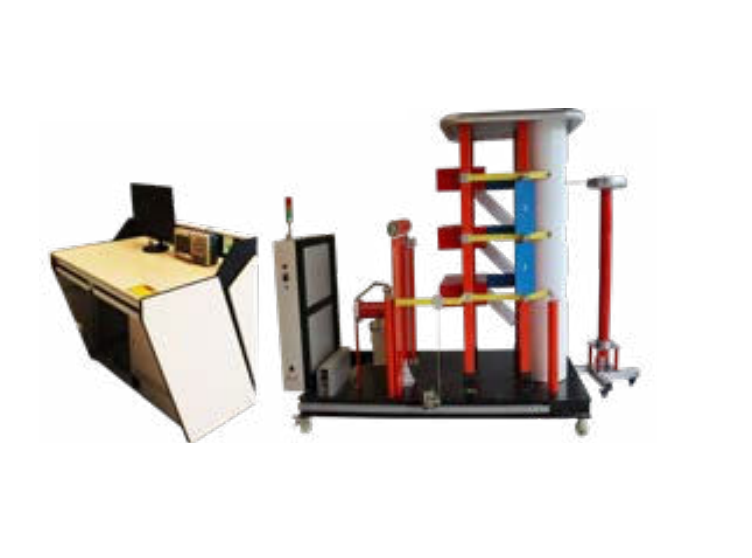

MultiTech MT-300KV/30 KJ Lightning Impulse Voltage Test System

Impulse Generator – Basic Technical Parameters

Lightning Rated Voltage: ± 300 kV

Rated Capacity: 30 kJ

Level Electric Capacity: 2 uF, 100 kV (HRMWF–2×50kV–4.0μF)

Level Voltage: ±100kV (DC) (2 x 50 kV)

Progression / Level Energy: 3/10kJ

Output Wave Shapes: ±1.2/50μs standard lightning impulse voltage full wave

Wave Time: 1.2±%30μs

Wave Rear Time: 50±%20μs

Over Swing: <%5

Efficiency: >%90

Rectification charging source (and impact main body integration)

Rated Voltage: Un=100kVDC

Nominal Current Nominal Current: In=50mA (Under rated voltage)

Voltage Control Voltage Control: % 0~100 Un

Polarity Inversion: The manual transformation high voltage direction

Input Voltage : 220V Single-Phase Voltage

Supply Frequency : 50/60 H

Power Source Consuption Power Source Consuption: Approximately 5kVA

Dimensions(mm): 1000 × 600 × 110

Damping Voltage Divider

Rated Voltage: 300kV

Fixed Electric Capacity : 500pF

Electric Capacity Pitch Number :1

Each Electric Capacity:  500pF(HRMWF300-500 Pulse capacitor)

Partial Response Time : <100ns

Over swing is < 10 % (Satisfies the IEC 60060-1 & IEC 60060-2 standard)

Dierential Voltage Ratio: 1000

Dierential Voltage Uncertainty  :<%1

Dimensions (mm): 1000 × 1200

Measurement equipment

Peak to Peak Value :MLT (IPM) 23 impulse peak voltmeter

Input Range: 100V~1600V

Uncertainty: <%1

Scope: Digital osilloscope

Highest Sampling Rate: 1.0GS/s

Bandwidth: >100MHz, resolution 8-bit

Record Length : 2.5 kbyte, 2 channel

Waveform Analysis: Computer-controlled system

Impulse Measurement Special-Purpose Software Package
