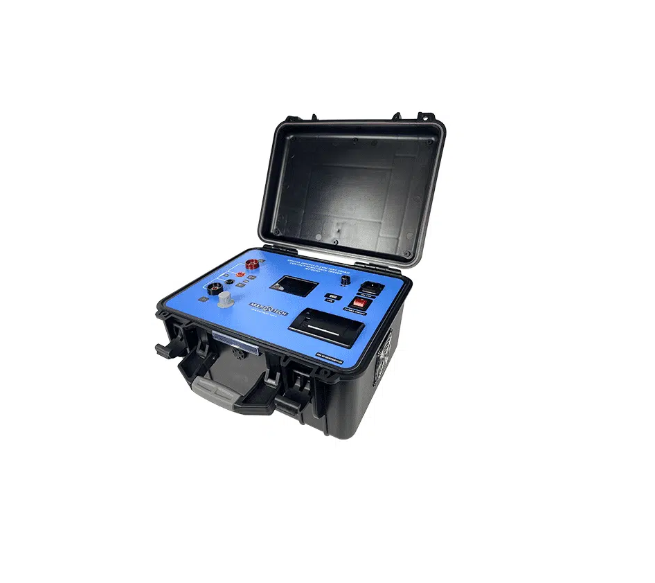

MultiTech MT-DCRT1100 Contact Resistance Tester (250mΩ)
Measurement Range / Resolution / Accuracy / Current
0–2.50mΩ / 0.1 µΩ / ±0.1% / 100A
0–5.0mΩ / 0.5 µΩ / ±0.1% / 50A
0.05mΩ–12.50mΩ / 1 µΩ / ±0.1% / 20A
0.1mΩ–25mΩ / 2 µΩ / ±0.02% / 10A
1mΩ–250mΩ / 20 µΩ / ±0.3% / 5A
Power Supply: 230 VAC, 50 Hz ± 10%, Single Phase
Output Current: Adjustable from 5 A to 100 A
Test Time: 10 seconds
Power Supply Protection Fuse: 4 A
220 VAC Input Protection Fuse: 5 A
Operating Temperature: 0 °C – 45 °C
Storage Temperature: 0 °C – 55 °C
Humidity: < 90% RH
Display: 3.5″ Touchscreen Color HMI Screen
Interface: USB
Memory: Internal Memory for 256 kB – 400 Tests
Printer: 58 mm Thermal Printer
Dimension (W x H x D): 430 × 230 × 370 mm
Weight: 9 kg
Cooling: Fan System
