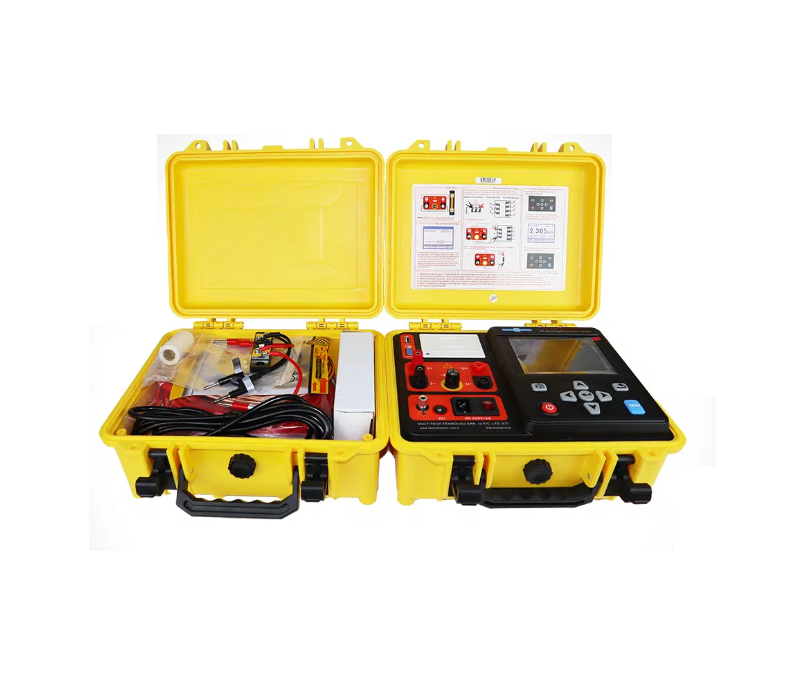

MultiTech MTS-TWR-CP10 DC Winding Resistance Tester (1MΩ)

Function: Transformer winding resis. test, low resis. test, equipotential bonding resistance test, metal connection resis. test, micro-ohmmeter

Power Supply: Built-in: 14.8V 7800mAh rechargeable lithium battery; Externa: AC 220V/2A 50Hz/60Hz

Test Method: Four-Wire Method

Charger: 16.8V/2A Charger

Test Interface:

I+ (current positive),

I- (current negative),

U+ (voltage positive),

U- (voltage negative)

Output Current: 10A, 5A, 1A, 400mA, 200mA, 40mA, <5mA

Range (Mains 220V):

500μΩ(10A)

1mΩ~4.4Ω (Constant current 5A)

10mΩ~22Ω (Constant current 1A)

25mΩ~55Ω (Constant current 400mA)

200mΩ~110Ω (Constant current 200mA)

1Ω~550Ω (Constant current 40mA)

10Ω~1MΩ (Constant voltage <5mA)

Range (Built-in battery):

500μΩ~200mΩ (Constant current 10A)

1mΩ~800mΩ (Constant current 5A)

10mΩ~12Ω (Constant current 1A)

25mΩ~30Ω (Constant current 400mA)

200mΩ~60Ω (Constant current 200mA)

1Ω~300Ω (Constant current 40mA)

1Ω~1MΩ (Constant current 12V <5mA)

Max. Resolution: 0.1μΩ

Data Storage: After the test is completed, the data is automatically saved, and the cycle is saved, which can store 9999 sets of data

Meter Size: About 320mm(L)×275mm(W)×145mm(H)
