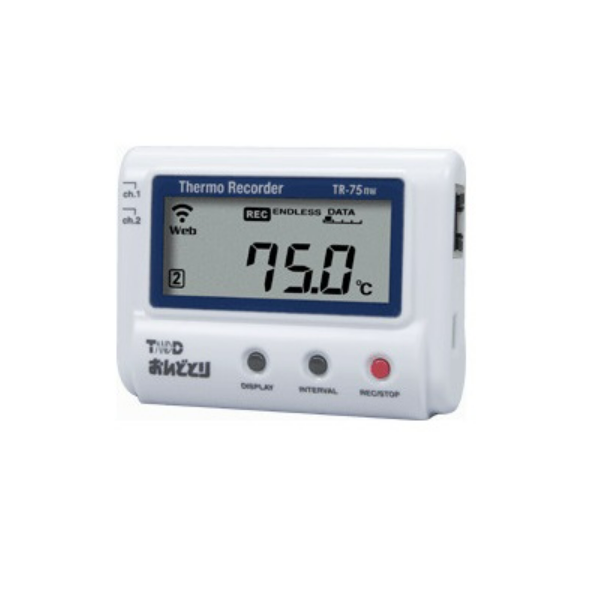

MULTI TR-75nw Temperature Data Logger

Measurement Channels: Temperature 2ch

Thermocouple Sensors: ( K, J, T, E, S, R )

Measurement Range:

K : -199 to 1370 °C

J : -199 to 1200 °C

T : -199 to 400 °C

E : -199 to 1000 °C

S : -50 to 1760 °C

R : -50 to 1760 °C

Measurement Resolution:

K, J, T, E : 0.1 °C

S, R : approx. 0.2 °C

Accuracy:

Type K, J, T, E: ±(0.5 °C + 0.3 % of reading)

Type S, R : ±(1.5 °C + 0.3 % of reading)

Logging Capacity: 8,000 ×2ch

Recording Interval:

1,2,5,10,15,20,30 sec

1,2,5,10,15,20,30,60 min

Communication Interfaces: Wired LAN / USB

Power: AA Alkaline Battery ×2 / Ni-MH Battery ×2 / AC Adaptor / USB Bus / PoE

Dimensions: H58×W78×D26mm

Weight: Approx. 55g

Accessories: AA Alkaline Battery, Registration Code Label. USB Mini-B Cable, Manual Set
