Bus Interfaces: System Communication Interface: 3U PXIe (XJ3 & XJ4, PCIe 2.0 X1/X4)
1553B Interface: J30J-25ZKW-J (4 channels, each with dual-redundant A/B sub-channels)
Physical Dimensions: 160 mm × 100 mm × 4 HP, with 3U ejector handle
Operating Temperature: -40 °C to +75 °C (industrial grade)
Storage Temperature: -50 °C to +80 °C
Humidity: 5% ~ 95%
Power Consumption: ≤ 6 W
Weight: ≤ 0.5 kg

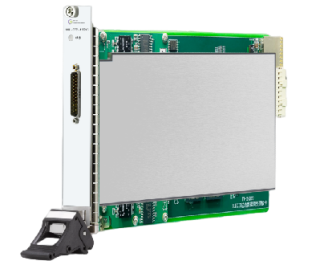

The MIL-STD-1553B communication card is a standard 3U PXIe module designed in compliance with the MIL-STD-1553B protocol and GJB289A-97 bus standards. It features a 4-channel dual-redundant architecture, with each channel configurable as BC (Bus Controller), RT (Remote Terminal), or RT & BM (Remote Terminal and Bus Monitor). The output adopts transformer coupling to ensure reliable signal transmission, and the communication rate supports up to 1 Mbps. The module is primarily designed for simulation, testing, and communication applications of MIL-STD-1553B bus systems. It also provides Windows-based host software and API driver interfaces to support system integration and secondary development.
