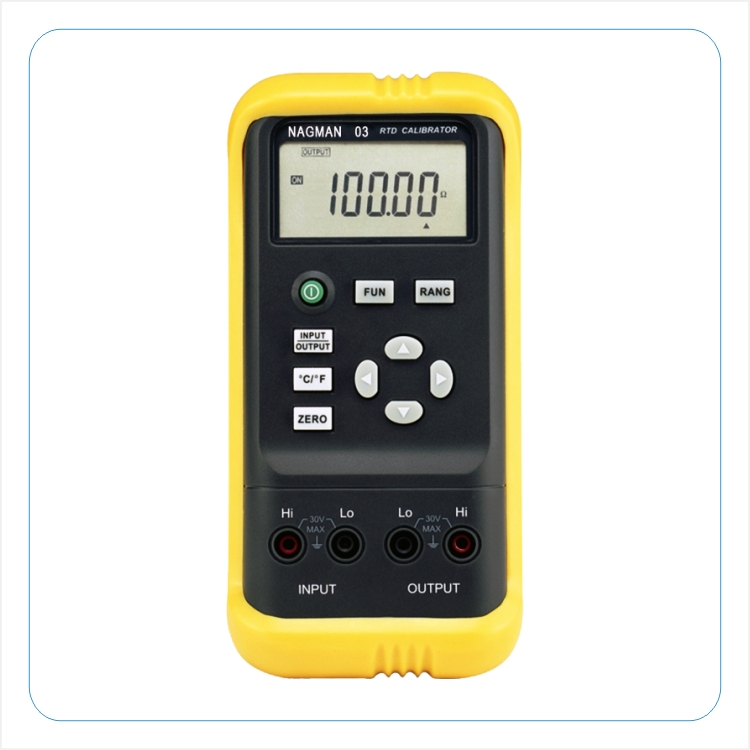

Nagman 03 RTD Calibrator (Resistance, RTD)

*Input/ Range/ Input range/ Resolution/ Accuracy/ Remarks:

+ Ohm/ 400 Ω/ 0 to 450 Ω/ 0.1 Ω/ ±0.05% measured value ±0.2Ω/ Measuring Current ±1 mA

+ RTD/ Pt100/ -200 to 850°C/ 0.1°C/ ±0.05% measured value ±0.6°C/ ±1 mA exciting Current use; Pt100-385. Measuring Current ±1 mA

+ RTD/ Cu50/ -50 to 150°C/ 0.1°C/±0.05% measured value ±0.6°C /±1 mA exciting Current

Output/ Range/ Input range/ Resolution/ Accuracy/ Remarks:

+ Ohm/ 400 Ω/ 0 to 400 Ω/ 0.1 Ω/ ±0.05% set value ±0.2Ω/ ±1 mA exciting Current

+ RTD/ Pt100/ -200 to 850°C/ 0.1°C/ ±0.05% set value ±0.6°C/ ±1 mA exciting Current use; Pt 100-385. Measuring Current ±1 mA

+ Cu50/ -50 to 150°C/ 0.1°C/±0.05% set value ±0.6°C /±1 mA exciting Current

Standard delivery:

Thermocouple Calibrator – Model : Nagman 02

9V Alkaline Battery

Operation Manual

Test Leads

Traceable Calibration Certificate

Optionals:

Calibration Certificate from NABL Accredited –as per ISO/IEC 17025:2005 Laboratory

Datasheet
