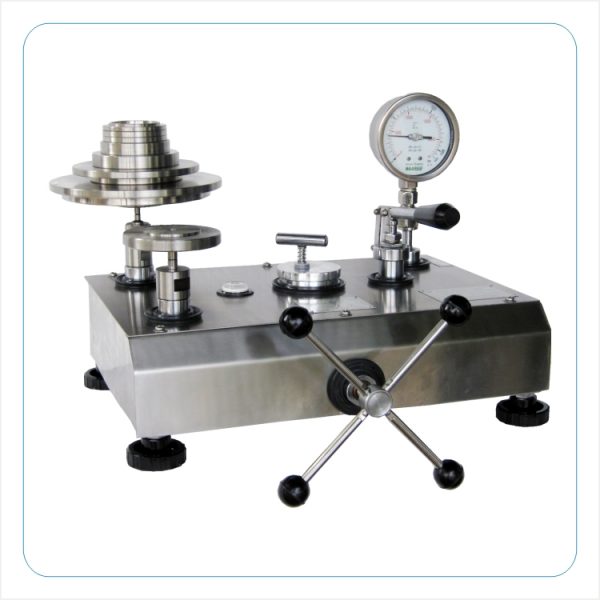

Ranges: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar
Piston: Single / Dual
Standard Accuracy: ±0.025% of Reading
Traceability: International Standards
Weights: Non-Magnetic Stainless Steel
Pressure generation: Thro’ Priming Pump & Screw Ram
Standard Corrections: Gravity : 9.80665 m/s2* / Temperature : 20°C / Air Density : 1.2 Kg/Cm2
Weight (approx.): Instrument : 19 Kg. ; Weight Sets : 8 to 33 Kg.
No. of Weights: 12 to 15
Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)
Operating Fluid: Oil
DWTCal Software: Optional
PCU: Tungsten Carbide Steel Piston & & Matching Hardened Cylinder
Remarks: Issued by NABL ISO/IEC 17025:2005 Accredited Lab
Standard Delivery: Basic Instrument, Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request) Calibrated S.S Weight Sets, Spirit Level, Pointer Puller / Punch, Operating Fluid (500 ml), Dust Cover, Wooden Carrying Case (for Weight Sets), Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005), Instruction Manual
Optionals: Right angled Adaptor / Two Gauge Adaptor, Conversion Weight Sets to convert from one unit of Pressure to another, Incremental Weight Sets for smaller increments of Pressure, DWTCal Calibration Software, Motorized Version
