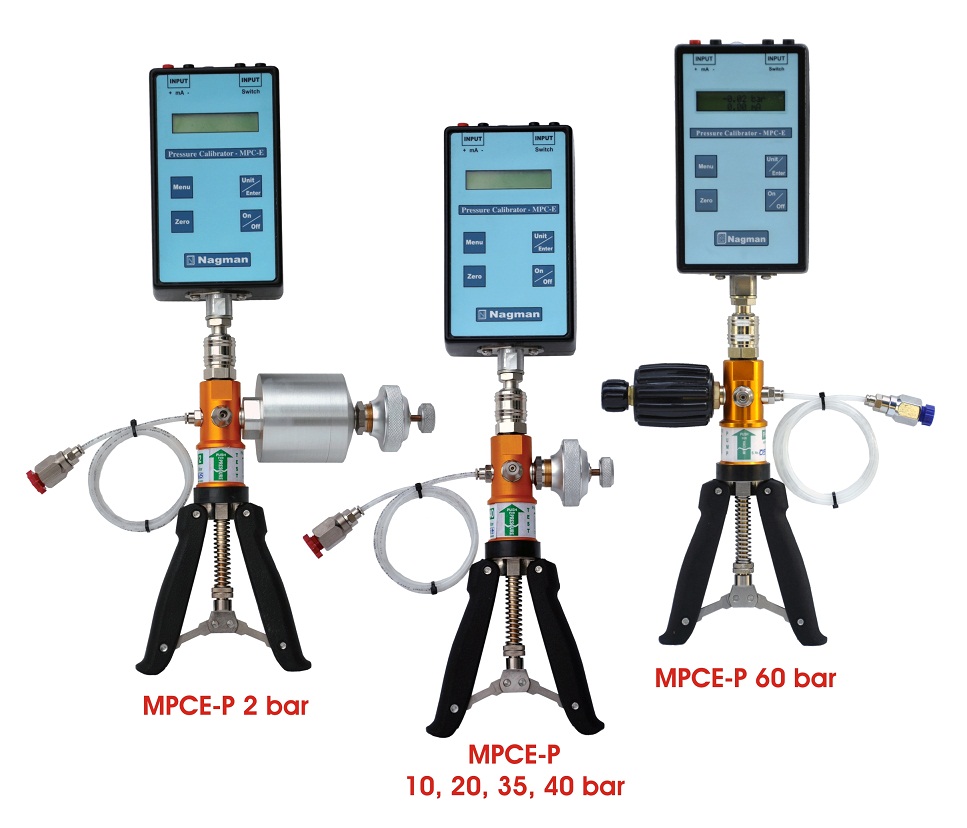

Nagman MPCE-P Pneumatic Pressure Calibrator (Economy, -0.85 ~ 60 bar)

Ranges: -0.85 to 2 / 10 / 20 / 35 / 40 / 60 bar

Accuracy: ±0.1% F.S.

Resolution: Minimum 4½ digits

Display: 2 line, 16 characters LCD (Alpha-Numeric)

Engineering Units: Mpa, Atm, Bar, Kg/cm2, mH2O, PSI, inHg, ftH2O, Kpa, inH2O, mmHg, cmH2O

mA Input: 0 to 25 mA DC (Active)

Volt Input: 0 to 30V DC

Resolution (mA / V): 0.001

Pressure Switch Test: Maximum 5V DC (approx.)

Over Pressure Alarm: 1105% FS (Audio / Visual)

Battery Type & Life: 9 Volts; Approx. 12 Hours

Low Battery Indication: Provided

Instrument Dimension: 420 x 340 x 120 mm (L x B x H)

Instrument Weight: 5 Kg

-Standard Delivery:

Pressure Indicator with matching Hand Pump

Set of Adaptors (BSP & NPT)

Test Leads & Seals Kit

Hose with End Fittings

9V Alkaline Battery

Carrying Case

Traceable Calibration Certificate

Instruction Manual

-Optionals:

Rechargeable Battery & External Charger

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory

Datasheet
