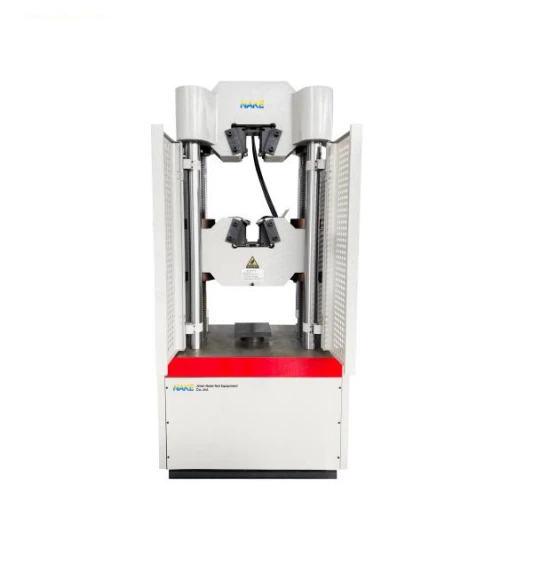

Max. Test Force: 300 kN
Frame Type: 2 columns, 2 screws
Accuracy Class: Class 1 / 0.5
Force Measurement Range: 2%–100% FS / 0.4%–100% FS
Force Accuracy: ≤ ±1% of reading
Deformation Accuracy: Within 2%–100% of extensometer full range, better than ±1% of reading
Max. Tensile Space: 600 mm
Max. Compression Space: 600 mm
Flat Specimen Thickness: 0–30 mm
Round Specimen Diameter: 13–40 mm
Piston Stroke: 200 mm
Compression Platen Size: 170×170 mm
Bending Roller Span: 100–450 mm
Distance Between Columns: 520 mm
Total Motor Power: ≈ 2.1 kW
Mainframe Dimensions (L×W×H): 800×540×2150 mm
Hydraulic Source Dimensions (L×W×H): 1140×785×950 mm
Rated Voltage: Three-phase 380 V + Neutral N
Operating Noise: ≤ 75 dB
Operating Temperature: 10–40 ℃
Gross Weight: ≈ 1500 kg
