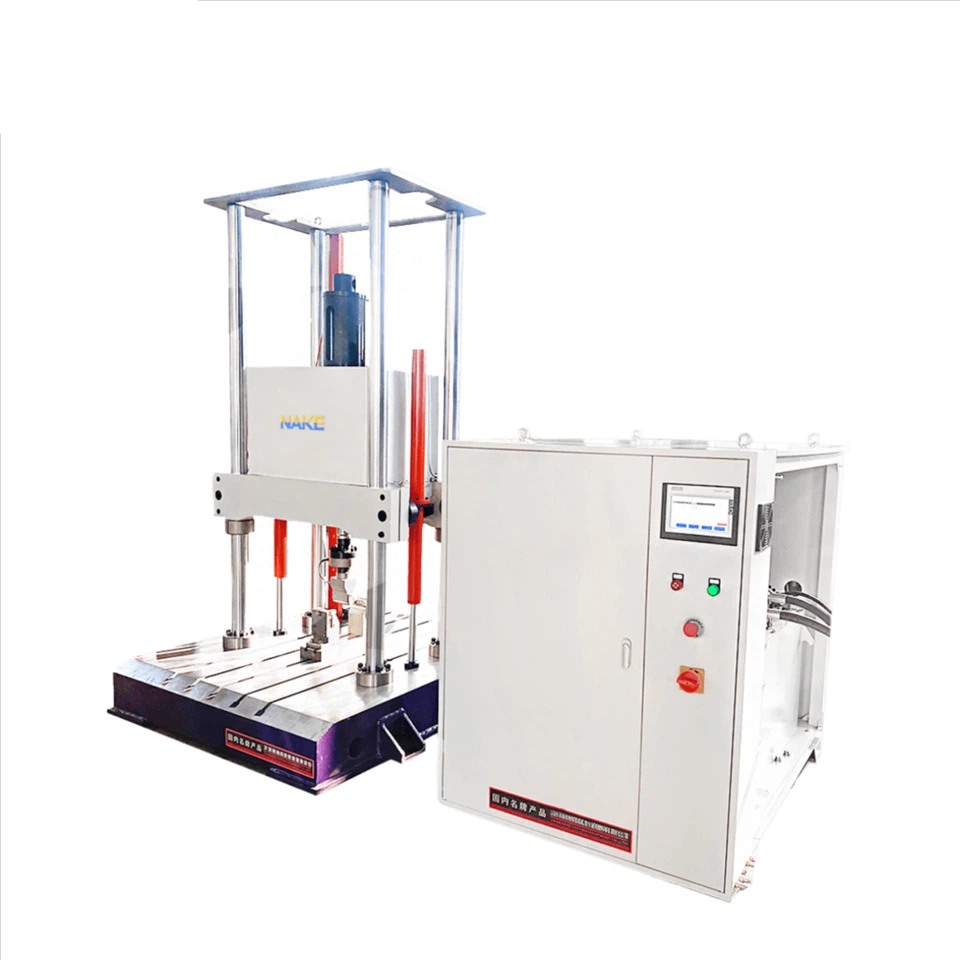

NAKE PWS100H Electro-Hydraulic Servo Fatigue Testing Machine (100KN)

Maximum test force KN (dynamic and static): ±100

Load frame: Four columns

Effective width of column mm: 555

Test space mm: 800

Test force measurement range: Dynamic 2%～100%FS

Force accuracy and fluctuation: Better than 1% of the indicated value; Amplitude fluctuation is not greater than ±1%F.S of each gear

Test force resolution: 1/250000 code

Test force indication accuracy: Dynamic ±1%; Static 0.5%

Displacement measurement range: 100mm(±50mm)

Displacement measurement resolution: 0.001mmm

Displacement indication accuracy: Indication accuracy 1% and within ±0.5%FS

Deformation: Indication accuracy 2% and within ±0.5%

Frequency range: Standard machine 0.01-50HZ (depending on the controller)

Main waveforms: Static pressure support 0.01-100HZ

Auxiliary tools: Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller); Forced flat push clamp, equipped with stretching rod and edge cutting jaws
