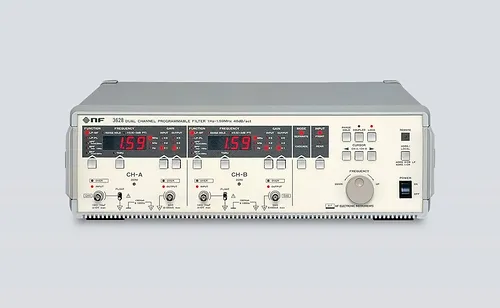

NF 3628 Dual Channel Programmable Filter (1Hz to 1.59MHz, LP/HP/BP/BE, 48dB/oct, 2CH)

Name: NF 3628 Dual Channel Programmable Filter (1Hz to 1.59MHz, LP/HP/BP/BE, 48dB/oct, 2CH)
Brand: NF

Model3628

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Cutoff frequency: 1Hz to 1.59MHz

No. of channels: 2

Roll off: 48dB/oct

Filter mode: LP-MF, LP-PL, HPF, BPF, BEF, THRU (MF: maximum flat, PL: phase linear)

Operational modes: SEPARATE (separate CH-A and CH-B), CASCADE (serially connected CH-A and CH-B)

Pass band gain: X1, X2, X5 selectable at both input and output

Input type: Single-ended or floating, selectable

Frequency response in THRU mode *: DC to 2MHz (+5dB, -3dB) typ.

Input impedance: 1MΩ ± 2%

Maximum attenuation: 90dB or greater (to 100kHz), 70dB or greater (to 2MHz)

GPIB: Standard

Power requirements: AC100, 120, 220 or 240V± 10% (max. 250V), switchable

Dimensions (mm): 434(W) X 132.5(H) X 400(D)

Weight: Approx. 10.5kg

* input and output gains : X 1, input voltage : 1Vrms
