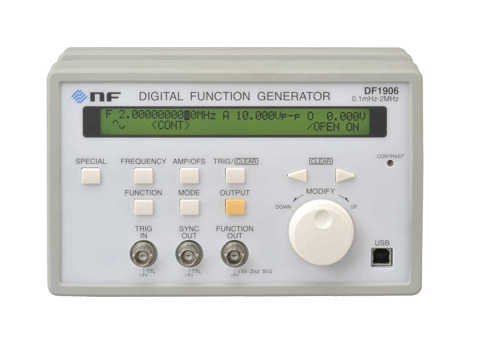

NF DF1906 Digital Function Generator (0.1mHz ~ 2MHz)

Oscillation frequency range: 0.1mHz to 2MHz

Output waveform: Sine, triangle (variable symmetry), square (variable duty factor), arbitrary (ARB), DC

Vertical resolution of waveform: 12 bits

Waveform and frequency:

+ sine, square (duty 50%): 0.1mHz to 2MHz;

+ Triangle, square (other than duty 50%):0.1mHz to 50kHz

+ ARB: 0.1mHz to 50kHz

Frequency setting resolution: 0.1mHz

Frequency accuracy: ±25ppm

Triangle wave variable symmetry: Setting range: 0% to 100%, Resolution of settings: 0.1%

Square wave variable duty range: Setting range: 0% to 100%, Resolution of settings: 0.1%

Arbitrary waveform size and number: 4K words, 4 waves

Max. output voltage: 10Vp-p/open

Output voltage resolution: 0.001Vp-p

DC offset: ±5.000V/open, resolution 0.001V

Output impedance: 50Ω, unbalanced

Oscillation mode: Continuous, burst, gate, trigger

Other functions: Load function(sets and displays actual output voltage when load is open or 50Ω.), Output on/off function, Setting memory (save/call 20 sets of setting items), Battery backup, Initializing function, input/output ground

Arbitrary waveform editor: Standard equipped

Interface: USB interface, USBTMC

Power requirements: AC 90V to 250V

Power consumption: 20VA or less

Dimensions (mm): 216(W)×132.2(H)×93.5(D)

Weight: Approx. 1.2kg
