Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 95 S/s/ch
Analog Input Isolation: 60 Vrms Ch-Ch Isolation
Example of Measurement Accuracy: 0.71 °C
Supported Sensors: All Standard Thermocouples
Front Connection Type: Miniature Thermocouple (mini-TC)
Conformal Coated: No
Enclosed: Yes
Supported Hardware Platform: CompactDAQ CompactRIO

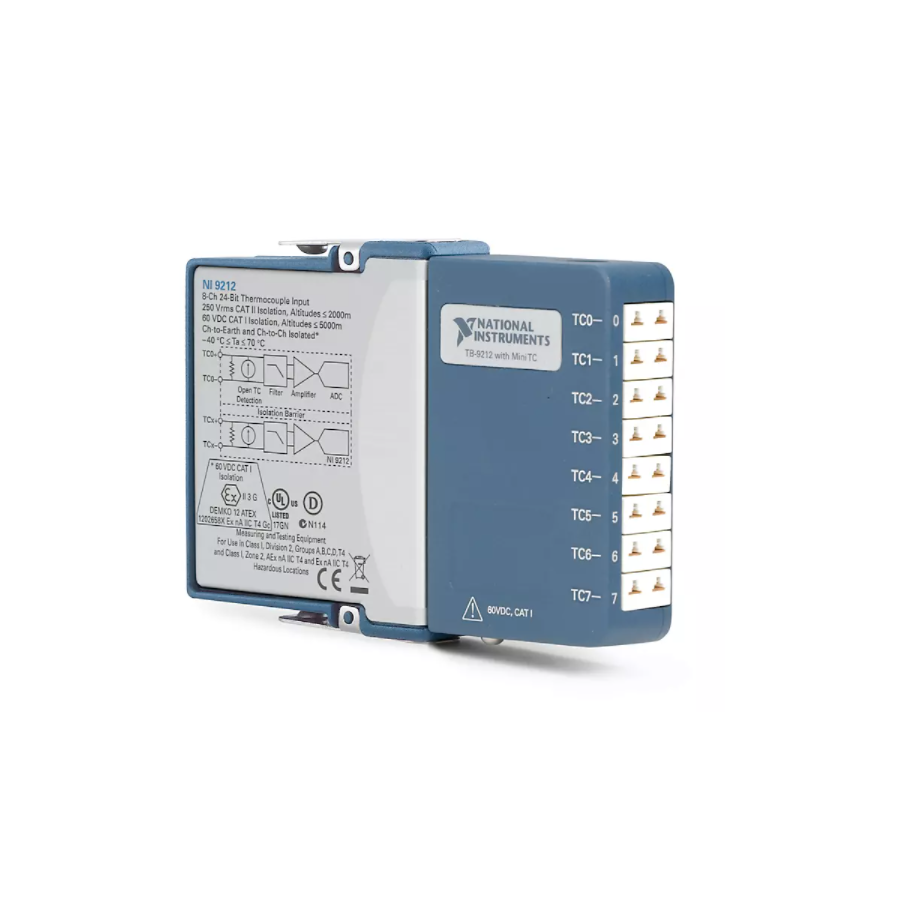

Takes measurements from thermocouples and resistance temperature detectors (RTDs) for CompactDAQ or CompactRIO systems.
The C Series Temperature Input Module features up to 16 channels of temperature input from either thermocouples or RTDS. This module can include anti-aliasing filters, open-thermocouple detection, and cold-junction compensation. Additionally, the module also feature isolation for safety, noise immunity, and high common-mode voltage range.The C Series Temperature Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
