NI NI-9236 C Series Strain/Bridge Input Module (8-Channel, ±29.4 mV/V, 10 kS/s/ch) | EMINKH.COM

Strain, Pressure, and Force
NI NI-9236 C Series Strain/Bridge Input Module (8-Channel, ±29.4 mV/V, 10 kS/s/ch)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

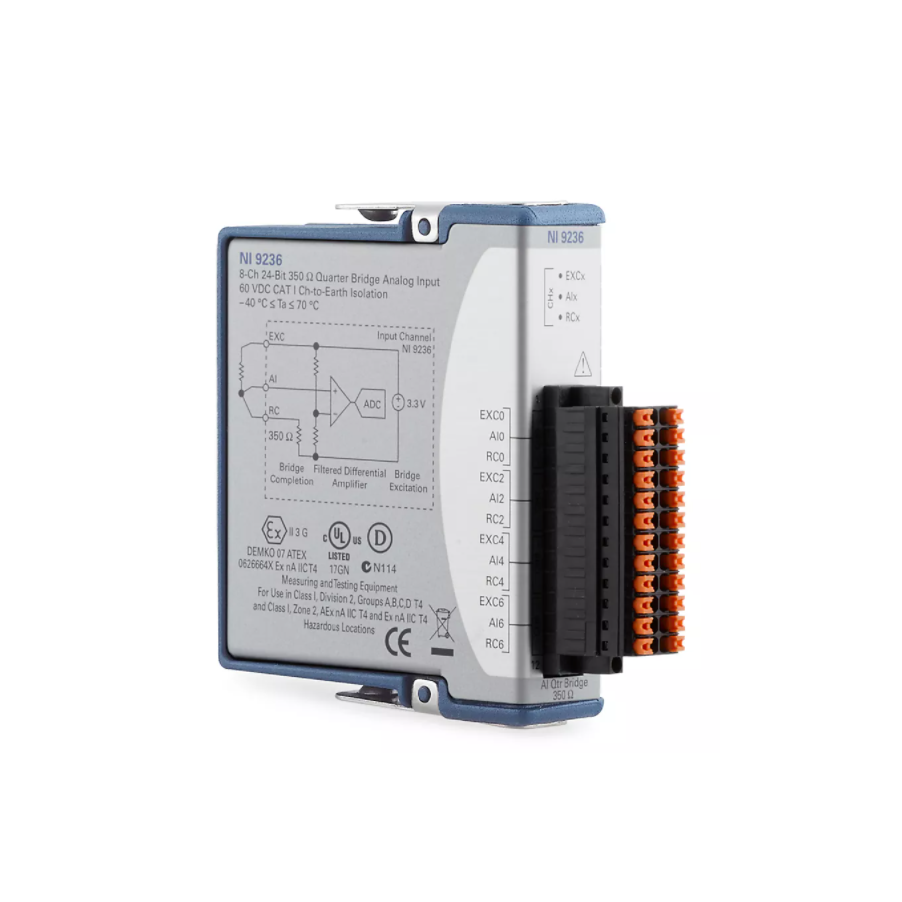

Product image

NI NI-9236 C Series Strain/Bridge Input Module (8-Channel, ±29.4 mV/V, 10 kS/s/ch)

ManufacturerNI(View more products from this manufacturer)

ModelNI-9236

P/N785996-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Bridge Resistance: 350 Ohm

Maximum Number of Differential Analog Input Channels: 8

Analog Input Voltage Range: -29.4 mV/V to 29.4 mV/V

Maximum Sample Rate: 10 kS/s/ch

Bridge Configurations: Quarter Bridge

Front Connection Type: Spring Terminal

Conformal Coated: No

Enclosed: Yes

Supported Hardware Platform: CompactDAQ CompactRIO

Provides analog input channels for measuring strain as part of CompactDAQ or CompactRIO systems.

The C Series Strain/Bridge Input Module works with higher-channel-count, dynamic strain measurement systems. Modules can acquire measurements from up to eight channels, with compatibility options for quarter-, half-, and full-bridge sensors. The C Series Strain/Bridge Input Module is ideal for application channels requiring measurements at particular times, such as impact tests. It includes built-in voltage excitation, as well as transient isolation for high-common-mode noise rejection and improved safety.The C Series Strain/Bridge Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
