Number of IF Digitizer Channels: 1
IF Digitizer Onboard Memory Size: 64 MB
IF Digitizing Resolution: 16 bits
IF Digitizer Maximum Bandwidth: 250 MHz
Sample Rate: 150 MS/s
Input Impedance: 50 Ohm
SFDR: -76 dBc

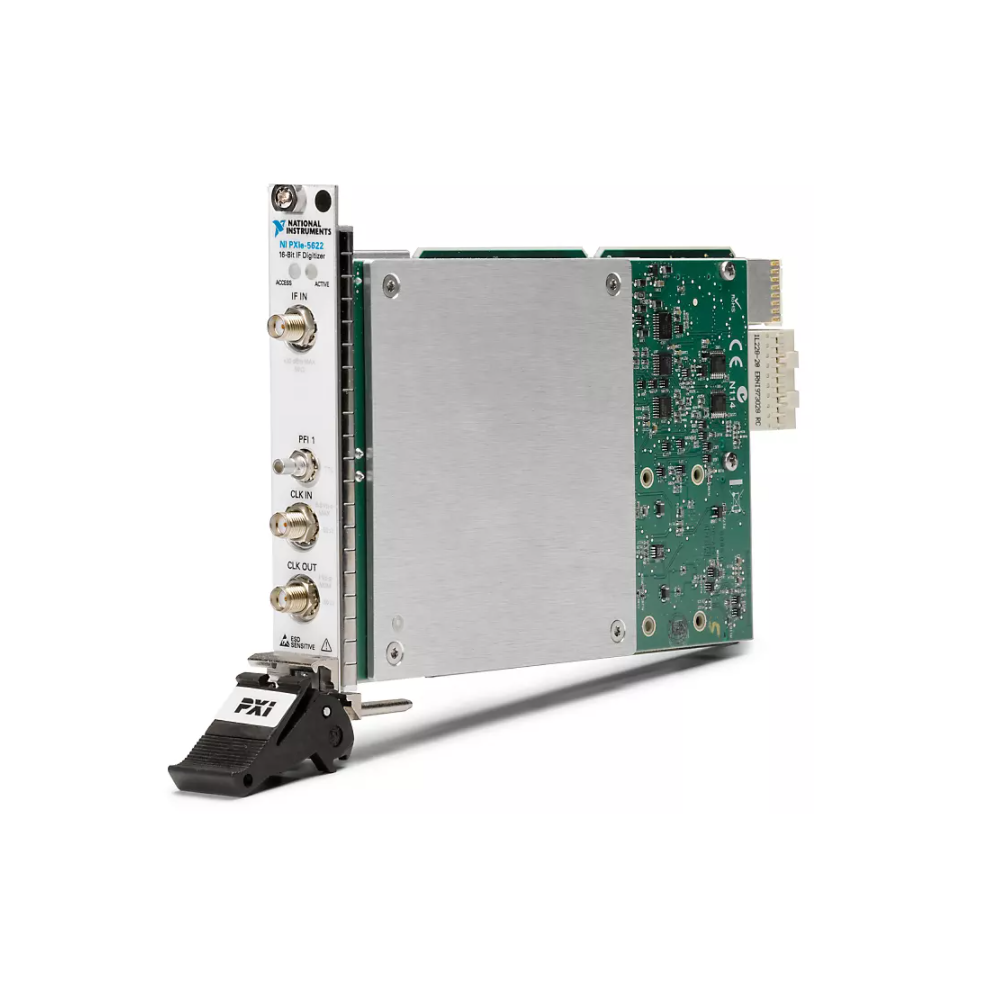

Analyzes intermediate frequency (IF) data for use in communications applications and superheterodyne receiver architectures.
PXI IF Digitizers offer onboard signal processing (OSP), which enables features such as quadrature digital downconversion (DDC), real digital downconversion, and anti-alias filtering. Models include a high dynamic range front end and a high‐throughput PXI Express interface, which allows them to stream IF data to disk for hours at the full sample rate. You can also choose a PXI IF Digitizer that can convert IF signals to I/Q data, so you can use this model as a stand‐alone IF digitizer or as part of a Vector Signal Analyzer.
