Maximum Number of Single-Ended Analog Input Channels: 0
Maximum Number of Differential Analog Input Channels: —
Analog Input Voltage Range: -10 V to 10 V
Maximum Sample Rate: 100 kS/s/ch
Simultaneous Sampling: Yes
Analog Input Resolution: 16 bits
Front Connection Type: Spring Terminal
Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation
Conformal Coated: No
Enclosed: No
Supported Hardware Platform: CompactRIO

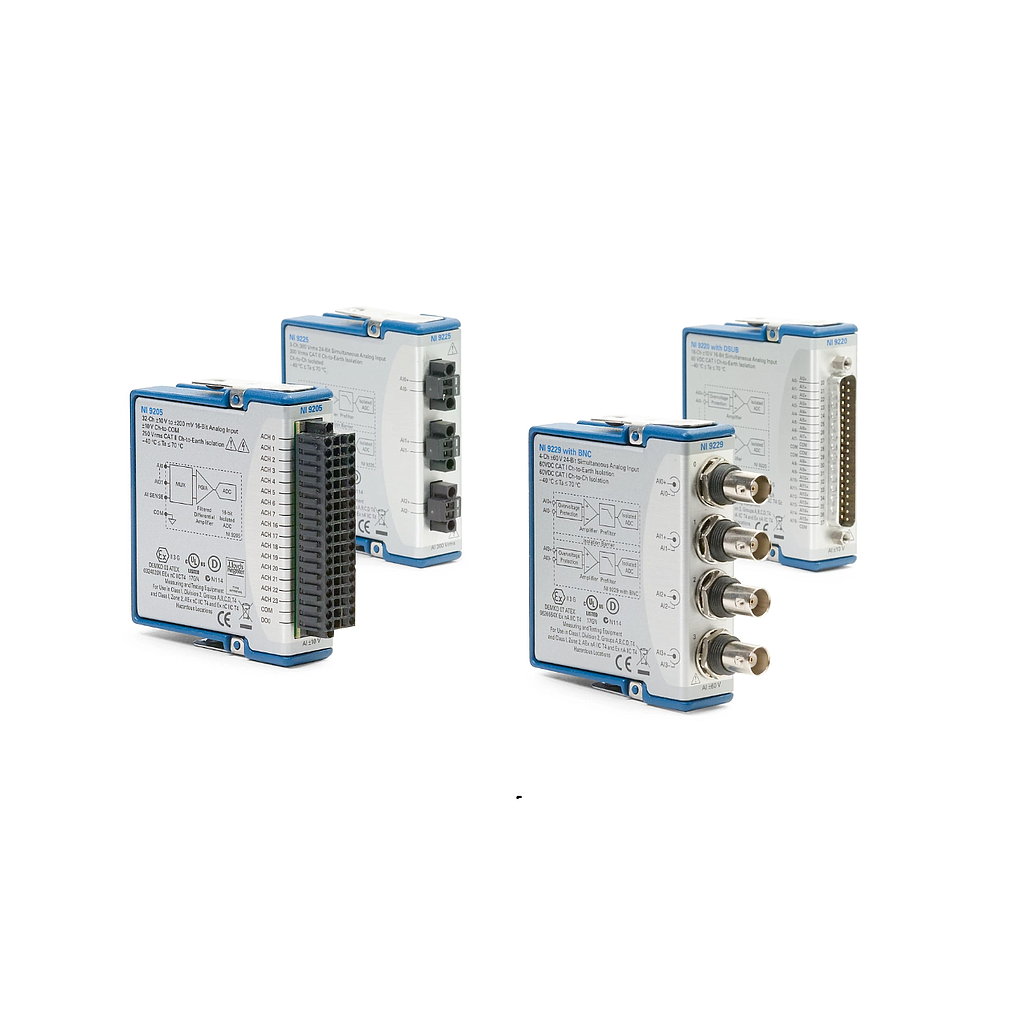

Measures input voltage signals for CompactDAQ or CompactRIO systems. Models also offer isolation and overcurrent protection for high-voltage applications.
The C Series Voltage Input Module helps you work with voltage measurement applications. This module features isolation to separate channels from each other, from COM, or from earth ground for safety, noise immunity, and high common-mode voltage range. The module features up to 100 V of overvoltage protection for errant signal connection or unexpected outputs to the individual channels. You can use included options such as configurable input ranges, output channels, various connectors, and enclosed or non-enclosed modules.The C Series Voltage Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
