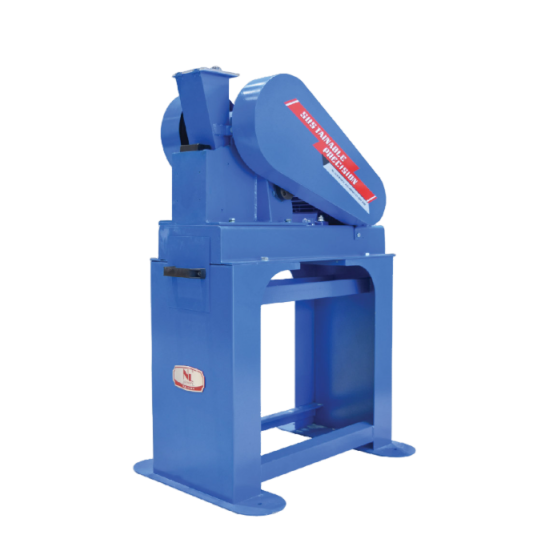

NL Scientific NL 1009 X / 002 Laboratory Jaw Crusher (55 mm, 145 – 650 kg/hr)

Max Feeding Size: 55 mm

Output Grain Size: 3 ~15 mm

Jaw Opening Size: 100 x 100 mm

Production Rate: 145 - 650 kg/hr

Approx. Weight: 150 kg

Dimension (mm): 830 (L) X 430 (W) X 1100 (H)

Rotation Speed: 1420 / 1750 r.p.m

Power Supply: 415 V, 50/60 Hz, 3 ph, 1.5 kW, 3.6 A

Unit Consist Of:

NL 1009 X / 001 – P 002 Specimen Tray

NL 1009 X / 001 – P 001 Jaw Blade (Set of 2)

1 Copy of Manual Instruction

Features:

Adjustable Jaw Opening - This feature allows researchers to control the size of the material being crushed, enabling customization for different testing requirements and sample types.

Output Size Settings - Jaw crushers typically offer options for adjusting the output size of crushed material, providing flexibility in obtaining the desired particle size for further analysis or experimentation.

High Operating RPM - Jaw crushers often operate at high rotational speeds, enabling efficient crushing of materials and maximizing throughput.

Lower Dust Generation - Advanced designs and technologies in jaw crushers help reduce dust generation during the crushing process, creating a cleaner working environment and minimizing contamination of samples.

Precise Mechanical Force - Jaw crushers exert precise mechanical force to crush materials effectively, ensuring consistent and reliable results in sample preparation.

Versatile Application - Jaw crushers are versatile machines suitable for crushing a wide range of materials, including aggregates, rocks, minerals, and ores with medium hardness, making them valuable tools in various industries such as metallurgy, geology, building materials, and chemistry.
