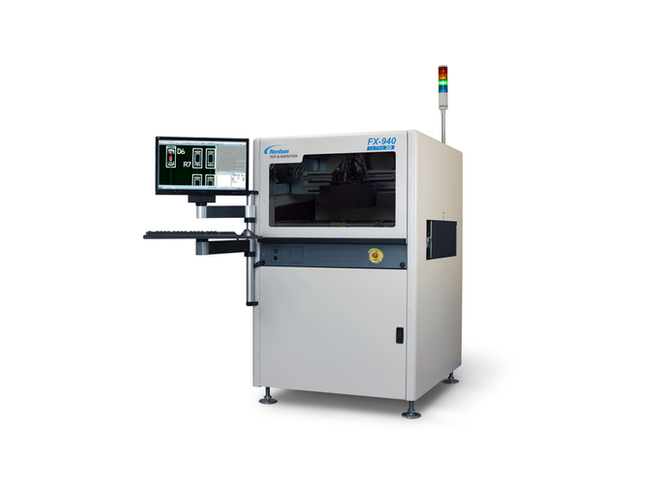

Throughput: Up to 30 sq. in./ sec. (194 sq. cm)
Maximum Board Size: 27.5” x 23” (698 mm x 584mm)
Maximum Inspection Area: 17” x 18.5” (437mm x 470mm)
Clearance: 4” (100mm) top and bottom
Optional: Upgrade 4 side angle cameras
Defects Detected: Coatings and dispensed material coverage, non-coverage, cracks and delamination
Software
Algorithms: Color, OCV, OCR, barcode recognition, both image and rule-based algorithms
Data Requirements: None
CAD Translation Package: Not required
Programming Skill Level: Technician or operator
Operating System: Windows 10
Off-line Software: Optional - Rework, Review and Program Creation
SPC Software: Real-time local and remote monitoring of first pass yield, defect trends, and machine utilization.
Hardware
Lighting: Proprietary UV, Coax and White LED lighting
Imager: Megapixel color camera: 12 or 20 μm pixel size
Resolution: 2448 x 2048
Facilities
Power: 110-220 VAC, 50/60 Hz, 15 amps
Footprint: 39” x 52” x 60” (1000mm x 1329mm x 1531mm)
Weight: 950 lbs (430 kg)
Machine Installation: < .5 hour
Features
• Quick set-up with Auto Train
• Megapixel color imaging
• Proprietary lighting
• Optional side angle cameras
Automated Inspection for
• Conformal coat coverage
• Micro Coatings
• Flux coverage
• Selected areas of non-coverage
• Delamination / cracks and bubbles
• SPC, barcode reading and archiving
of inspection results
• Includes SMT and THT component inspection
