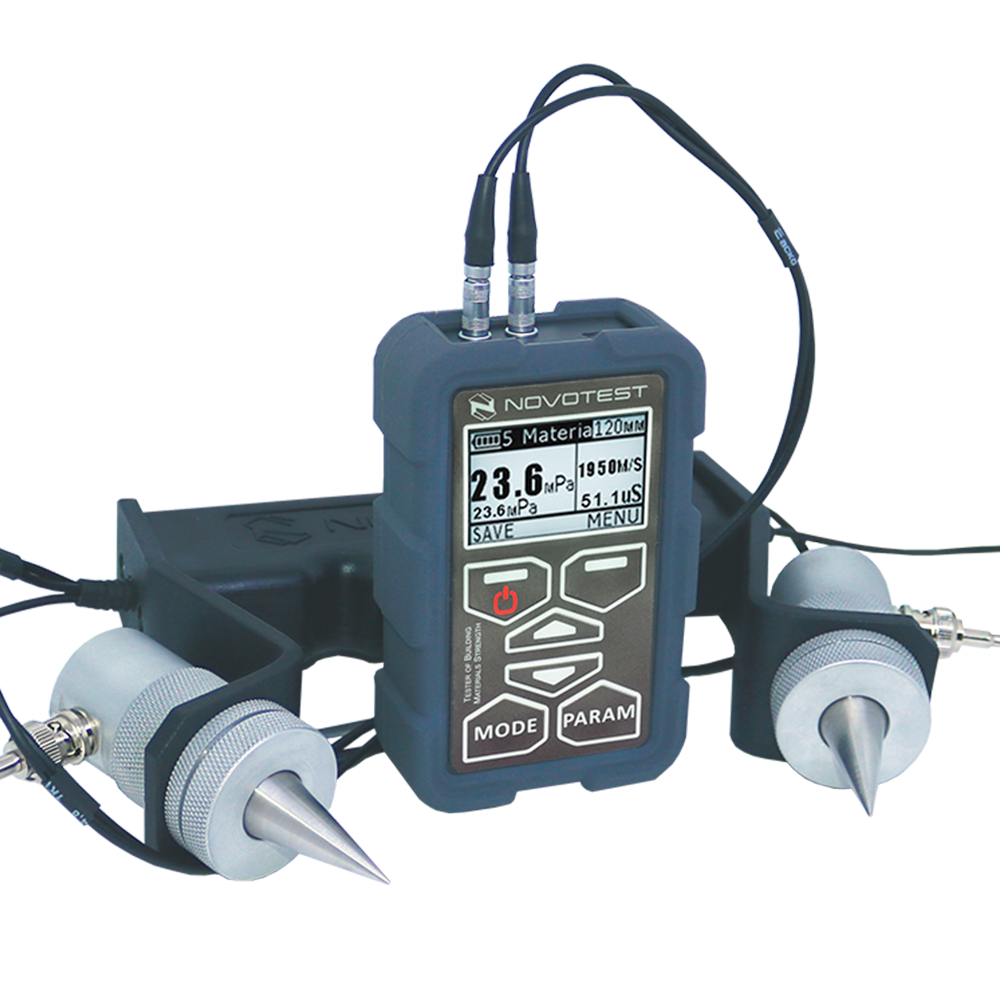

NOVOTEST IPSM-U Strength Meter

The range of measurements of the propagation of ultrasonic vibrations :10~ 9999 µs

The measurement resolution of the propagation time of ultrasonic vibration: 0.1 µs

The operating frequency of the ultrasonic oscillations: 50-100 Khz

The base surface sounding measurements: 120 mm

The output voltage: 600 V

Overall dimensions of el. unit: 122*65*23 mm

Operating temperature: -20…+40 C°

Power: 2 AA batteries

Time of continuous operation: 10 hour

Standard package: Electronic unit, Surface sounding probe with cables, Standard sample, 2 AA batteries, Charger, Operating manual, Packing container

Portable strength meter IMSP-U is designed for rapid non-destructive testing the strength of concrete, bricks, composite and other building materials. Ultrasonic device allows user to measure thickness and strength of the cross-cutting and superficial methods by measuring the speed and time of ultrasonic waves in a controlled objects – materials.

Key features of the ultrasonic strength meter IPSM-U:

- determine the density and elastic modulus fiberglass and so on;

- definitions of sound index of construction ceramics and abrasives;

- estimates of the porosity, fracturing and anisotropy of the material;

- assess the degree of maturity of the concrete in a monolithic concreting.
