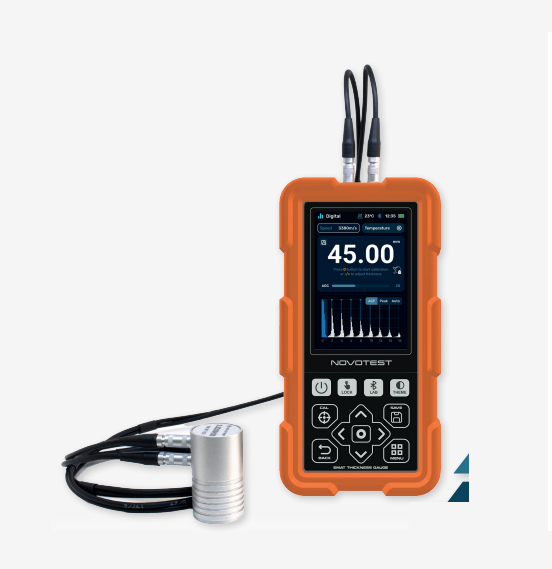

NOVOTEST NEXUS EMAT Thickness Gage (0.6 – 300 mm)

Measurement thicknesses range for steel : 0.6 – 300 mm (and more, depending on the probe type and object characteristics)

Coating thickness or air gap range : Up to 6 mm (depending on the object characteristics)

Measurement accuracy:  ±(0.01h + 0.05)

Measurement resolution : 0.01 mm / 0.0001 inch

Measurement units : mm (m/s); inch (inch/μs)

Probes temperature measurement ranges:

 - Standard probe:  -20 to +50°C

 - High-temperature probe:  -20 to +250°C

(depending on the conditions and measurement and cooling cycle – up to +600°C)

Ultrasound velocity adjustment range : 1000 – 9999 m/s

Gain range : 30 – 100 dB (autogain)

Measurement modes: Digital; Auto; Advanced

Special modes: Spreadsheet; B-scan; Control

Data storage: Device - 4GB SD card (~13000 measurements); NOVOTEST Lab App – limited only by the memory of the Android gadgets; Cloud storage – limited only by the memory of the Cloud storage

Data transfer: Wireless connection with Android smartphones, tablets, etc.:- NOVOTEST Lab App PC: - Web interface – NOVOTEST.INFO

Languages : English, Spanish, Ukrainian, Russian *additional languages available by request.

Power supply / Charging : Built-in Li-ion battery / 5V USB

Batteries life : 8 h

Operating environment : Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С

Dimensions and weight of electronic unit : 175x85x40 mm / 0.3 kg
