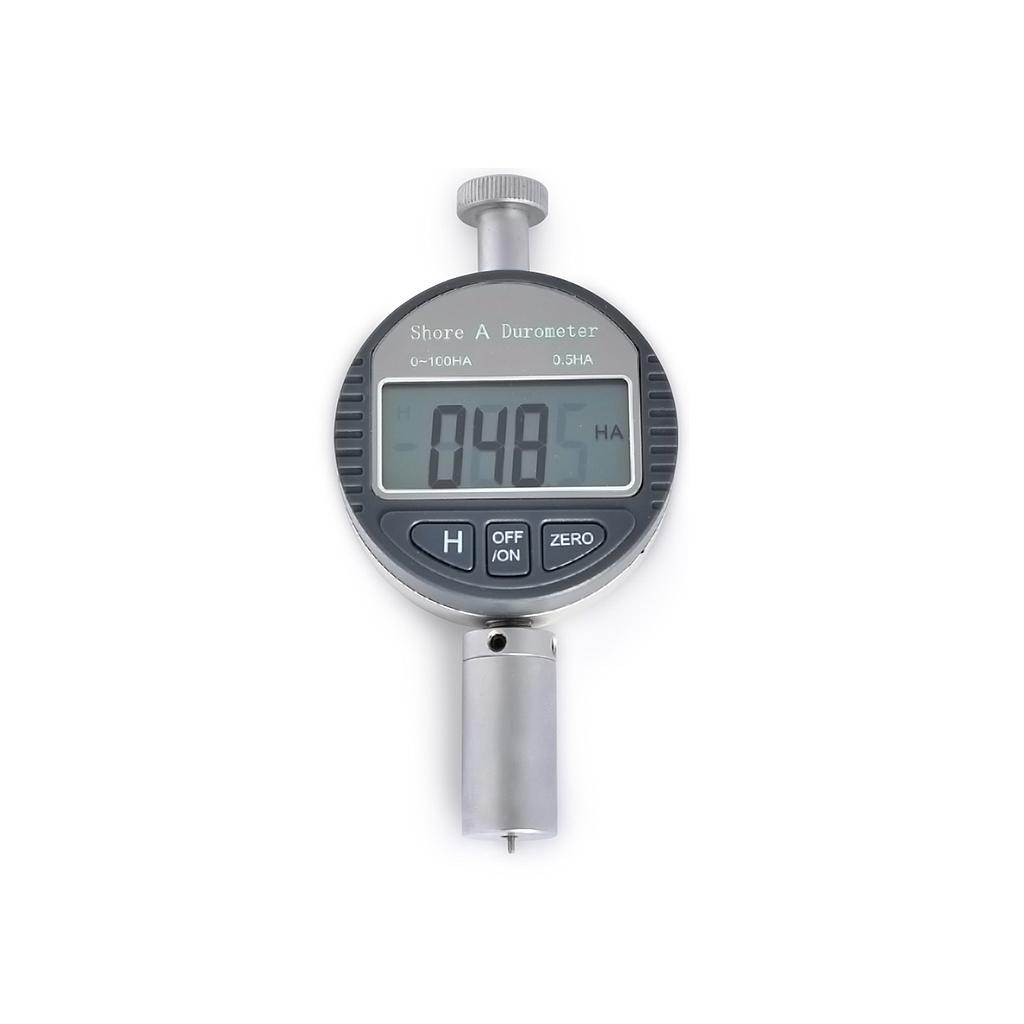

NOVOTEST TS-C Digital Shore Durometer (0~100; ±0.5)

Measurement range, Shore scale: from 0 to 100

Interval of scale indicator, Shore scale: 0,5

Measurement accuracy: ± 0,5

Dimensions, mm: 115*60*25

Weight, kg, no more: 0,5

Standard package:

- Shore durometer

- Operating manual

- Case

Description:

- The Shore Durometer is one of the modern non-destructive testing instruments for measuring the hardness value of different materials at the workshops and laboratory. The device can be used at the radio instruments industry, mechanical engineering and others of modern industry.

- Shore Durometer NOVOTEST TS-C complies to ISO-7619 and ISO-868, DIN53505, ASTM D2240 and JIS K7215.

- Soft plastic, printed circuit boards, glass, elastomers, fibers, soft rubber, leather, resin, wax, neoprin, butyl, silicone, vinyl are typical controlled materials for Shore Durometer. The principle of determining the hardness value of materials is based on the calculation the value of material’s resistance to the penetration of the indenter with a preset load.

Advantages:

- Shore Durometer NOVOTEST TS-C is a new modern electric unit with the digital display.

- Shore Durometer NOVOTEST TS-C has two versions: A and D.

- Shore Durometer A is designed for testing the following materials: soft rubber, elastomers, silicone, neoprin, vinyl, butyl, nitrile, soft plastics, leather, wax, etc.

- Shore Durometer D is designed for testing products from rubber, resin, glass, PCB, fibers, plastics, etc.
