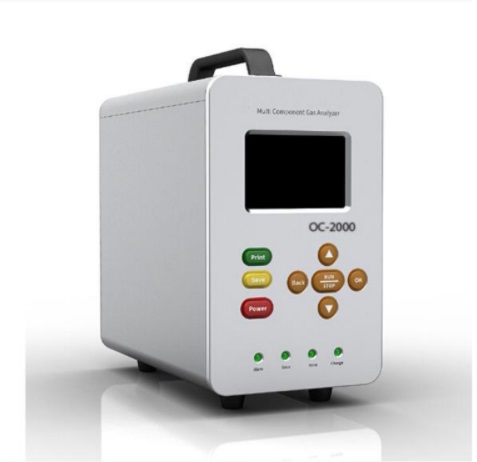

Oceanus OC-2000 Multiple gas analyzer (O2, CO2, NOx, H2S, CH4, CO)

- Gas type: O2, CO2, NOx, H2S, CH4, CO

- Working principle:

CH4, CO2 : infrared sensor

O2, NOx, H2S, CO: Electrochemical sensor

Sampling mode: Pump-suction sampling (speed 2L/min)

- Range:

O2:0-30%vol

CO2:0-100%vol

NOx:0-4000ppm

H2S:0-100ppm

CH4:0-100%vol

CO:0-3000ppm

- Accuracy: < +/- 2%

- Linearity: < +/- 1%

- Repeatability: < +/- 1%

- Response time: < 20s (T90)

- Resume time: < 20s (T90)

Print mode: Mini printer (optional)

Working temp. : -30~60℃

Working humidity: 0-95%RH(non condensing)

Working pressure: -30Kpa ~ 100Kpa

Ex grade: Ex ia II CT6

Protection grade: IP65

Dimension: 230*120*220mm (LxWxH)

Weight: 2.5KG

Power supply : 6000mA rechargeable lithium battery

DATASHEET
