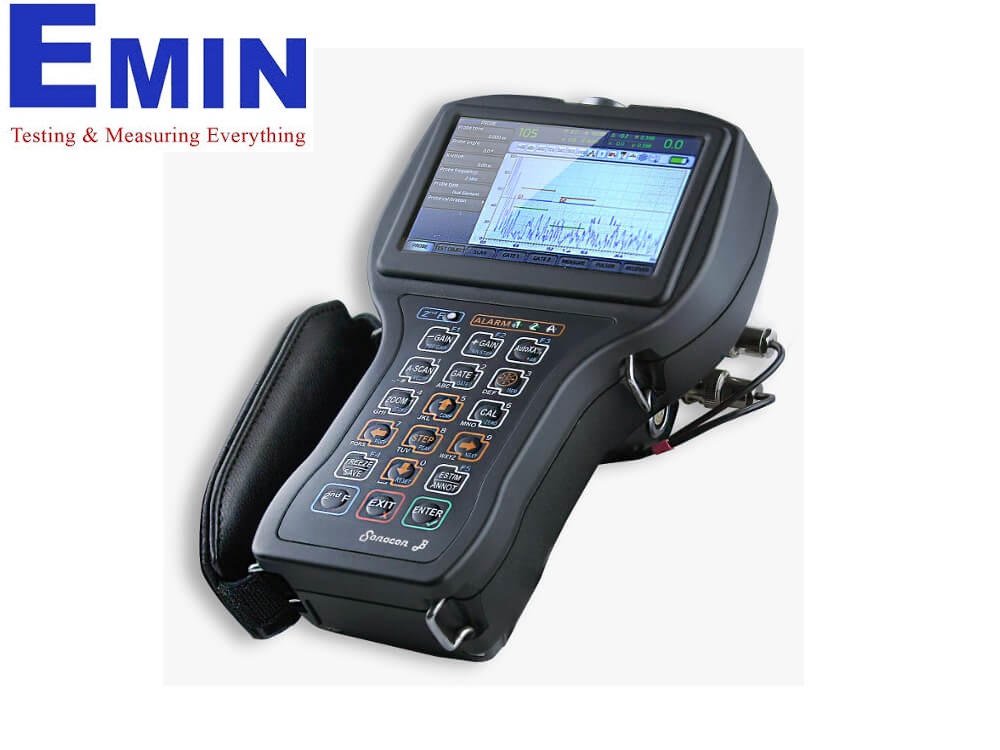

OKO Sonocon B Ultrasonic flaw detector

Display

Size:4.5”

Resolution:800×480

Connectors

Probe connectors:
2 × BNC or

2 × LEMO-1 or

2 × LEMO-00

Analog output:Alarm

USB1:Type A

LAN:✔

Pulser

Types:Spike + Square Wave (SWP)

Voltage (SWP):
50 V, 100 V,

150 V, 200 V,

250 V, 300 V,

400 V

Energy (SWP):20 ns to 1000ns with 10 ns step Manual & Auto modes

Voltage (Spike):Low: 50 V,

High: 300 V

Damping:✔

PRF modes:Comfort, Low, Medium, High, Manual

PRF:from 15 to 6000 Hz

Phantoms control:3 modes

Receiver

Range (at steel longitudinal wave):314 in(8 000 mm )

Gain:0 to110 dB, with 0.1 dB step

Max signal input:20 V p-p

Bandwidth:0.2 MHz - 27 MHz

Filters:
0.2-27 MHz,

0.2-10 MHz,

2.0-21.5 MHz,

8.0-26.5 MHz,

0.5-4 MHz,

0.2-1.2 MHz,

1.5-8.5 MHz,

5-15 MHz,

0.4 MHz,

0.5 MHz,

1 MHz,

1.25 MHz,

2 MHz,

2.25 MHz,

2.5 MHz,

3.5 MHz,

4 MHz,

5 MHz,

7.5 MHz,

10 MHz,

15 MHz,

20 MHz

Filters set choice:✔

Rectification:RF, FW, Pos. HW,

Neg. HW

TCG (TVG)110 dB;

up to 110 dB/μs slope

Signal AverageOFF / 2x / 4x / 8x / 16x / 32x / 64x

Reject (cutoff)0-80% FSH

Measurement

Number of gates2

Number of cursors2

Modes1, 2, C1, C2, 1-2, 1-C1, 1-C2, 2-C1, 2-C2, C1-C2

TOF ModesPeak, Edge (Flank)

Amplitude measurementup to 220% FSH

Unitsmm / in / us

Output fields5

Alarm

Number of gates2

Number of levels3

Flaws evaluation

AWS✔

DGS (AVG)✔

DAC✔

DAC: Number of points128

DAC codesASME & ASME III,

EN 1712, EN 1713,

EN1714, JIS Z3060,

GB11345, GB 4730

Custom DAC curvesup to 6

DAC 20-80✔

DAC <=> TCG✔

Memory

Setups✔

Datasets (with A-Scans)✔

Capacity2 GB (up to 64 GB)

PC software✔

Other Features

Coupling control✔

AGCindependent for both gates

Quick calibration✔

Quick evaluation (Best signal catch)✔

Auto XX % (50% or 80%)✔

Reference gain✔

Peak hold (collect, peak memory)✔

Signals compare✔

Smart zoom✔

Choice of menu systemsFull

Simple 1

Simple 2

Keyboard backlight✔

Smart (Context) keyboard backlight✔

Number of keyboard shortcuts241

Physical

Dimensions9.5×4.4×5.3"(241×112×135 mm)

Weight incl. battery2 lbs (0.95 kg)

Operating temp. range-22°F to 122°F (-30°C to 50°C)

Dust & water protectionIP65

Battery life8 h

Replaceable battery✔

1 USB Type A (aka Host or Master) allows connecting external devices (a USB stick, a mouse, etc).
