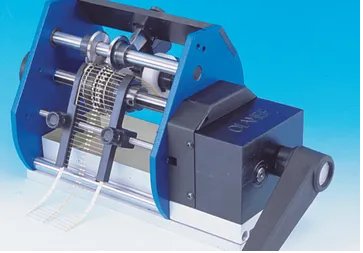

Olamef TP6/V-PR/2 Cutting bending forming machine for axial components vertical mounting (vertical mounting)

The TP6/V-PR/2 machine is used to cut, bend and form axial components for vertical assembly. The shape created serves to block the component on the board. The dimensions are almost all adjustable. The machine processes components with lead Ø from 0.5 to 0.8 mm. The shape created has a 5.08 mm pitch. Special versions can be designed to form larger leads.

It is possible to eliminate preforming and obtain only the "V" fold of the components.

NB: THE LENGTH OF THE LEAD BETWEEN THE BODY AND THE TAPE MUST BE MINIMUM: BODY LENGTH + 18 MM.
