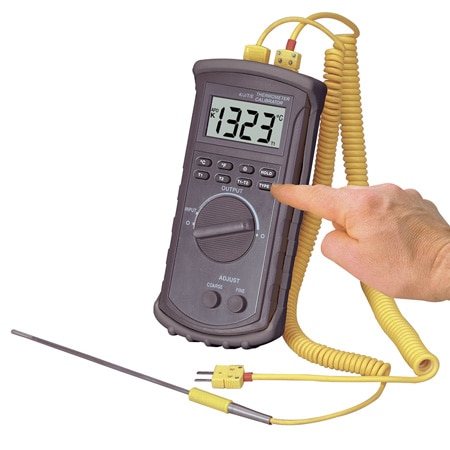

OMEGA CL3512A Rugged J,K,T, E Thermocouple Calibrator and Thermometer

Width: 92 mm

Height: 195 mm

Length: 53 mm

Weight: 250 g

Accuracy: ± 0.1 %

Polarity: Automatic, positive implied, negative polarity indication

Weight Note: Approximately 250 g (9 oz)

Auto-Ranging: 0.1° to 1°

Battery life: 100 hr

Display Type: LCD

Accuracy Note: ± (0.1% rdg + 1°C) Accuracy is specified for operating temperatures from 18 to 28°C (64 to 82°F), for 1 year, not including thermocouple error; ± (0.1% rdg + 1°C) range -60 to 1372°C [± (0.1% rdg + 2°F) range -76 to 1999°F] ± (0.1% rdg + 2°C) range -60 to -220°C[± (0.1% rdg + 4°F) range -76 to -364°F]

Sampling Rate: 1 Hz (1 update/second)

Supply Voltage: 9 Vdc

Resolution Note: 0.1 (to 199.9) or 1°

Resolution, Max: 1 °C

Resolution, Min: 0 °C

Auto-Ranging Note: 0.1° to 1° resolution above 199.9 (°C or °F)

Display Type Note: 3 1⁄2 digit LCD with a maximum reading of 1999. Overrange: (-OL) is displayed. Zero: Automatic

Thermocouple Type: J, K, T, E

Battery Indication: A low battery indication is displayed when the battery voltage drops below the operating level

Type of RTD Signal: None

Simulation Accuracy: Measurement Accuracy + 1°C

Relative Humidity, Max: 0.8

Relative Humidity, Min: 0%

Storage Temperature Note: -20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed from meter

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -20 °C

Operating Temperature Note: 0 to 50°C (32 to 122°F) @ <80% RH

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
