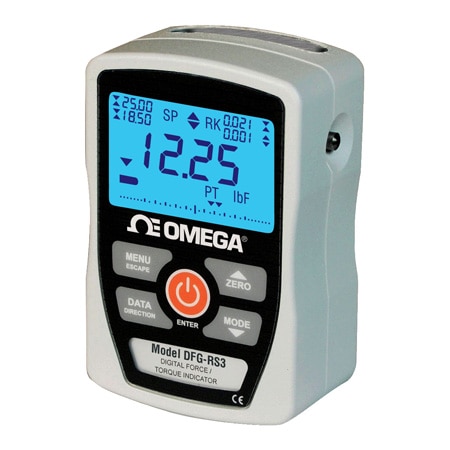

OMEGA DFG-RS3 Digital Gauge (S-beam, ± 0.2 %)

Width: 2.53 in

Height: 3.9 in

Length: 1.5 in

Weight: 0.7 lb

Accuracy: ± 0.2 %

Baud Rate: 115200

Force Type: Compression, Tension

Display Note: Large Backlit Graphics Display

Display Type: LCD

Configuration: Digital filters, USB output, automatic shutoff, default settings, key tones, audio alarms, calibration

Data Interface: USB

Load Cell Type: S-beam

Number of Digits: 5

Relative Humidity: 96% non-condensing maximum

Supply Power Note: 8.4V NiMH Rechargeable Battery or By an AC Adapter (Batteries and Adaptor Included)

Supply Power Type: AC, Battery

Measuring Capacity: N/A

Additional Features 1: Indicator

Battery Size and Type: NiMh

Display Measuring Units: gF, kgF, kgFm, kgFmm, kN, lbF, lbFin, N, Ncm, Nm, ozFin

Operating Temperature, Max: 38 °C

Operating Temperature, Min: 5 °C

Datasheet
