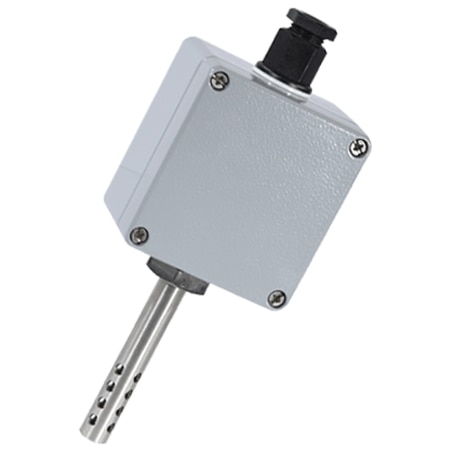

OMEGA EWSA-PT100-TX Air Temperature Sensor for Indoor or Outdoor Use (100 Ω RTD, Screw Terminal, 85 °C, Class A)

Name: OMEGA EWSA-PT100-TX Air Temperature Sensor for Indoor or Outdoor Use (100 Ω RTD, Screw Terminal, 85 °C, Class A)
Brand: OMEGA

ModelEWSA-PT100-TX

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Accuracy: Class A

Mounting: M20 Cable Gland

Probe Length: 75 mm

Probe Diameter: 12.7 mm

Number of Wires: 4

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP65

Supply Power Note: 10 to 30Vdc, loop powered [(V supply-10)/20] KΩ. eg. 700Ω @ 24V

Nominal Resistance: 100 Ω

Electrical Connection: Screw Terminal

Temperature Sensor Type: 100 Ω RTD

Process Temperature, Max: 85 °C

Process Temperature, Min: -40 °C

Standard Transmitter Scaling: None
