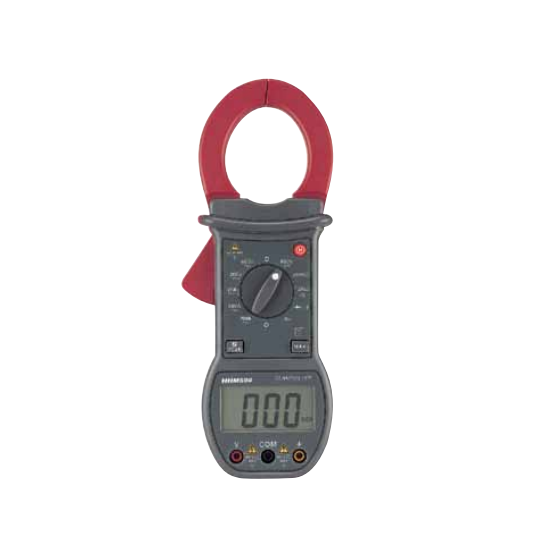

OMEGA HHM598 Clamp-on multimeters (700AAC, 1999 counts)

Specifications

DCV

Basic Accuracy, %: 0.5

Max Resolution, µV: 1V

ACV:

Basic Accuracy,%: 1.2

Max Resolution, µV: 100mV

Frequency Response, Hz: 50 to 500

ACA:

Accuracy:

50 to 60Hz 1.5%: 0~700 A

40 to 500Hz 3.5%: 0~700 A

50 to 60Hz 2%, A: 700 A

MAX resolution, A: 0.01

Ω

MAX Resolution, Ω: 1

MAX Resistance, MΩ: 200

Basic Accuracy, %: 0.1

Counts resolution: 1999

Range Auto Manual: M

AC current measurement: up to 700 A

DC current basic accuracy: ±1.5%

Input Impedance MΩ: 10

Peak/Hold: yes

Data/Hold: yes

Max/Hold: yes

Frequency: yes

Continuity: yes

Diode test: yes

Standard delivery

Safety test leads

9 V alkaline battery

Type K beaded wire thermocouple (temperature models only)

Complete operator's manual

Datasheet
