Width: 1.25 in
Height: 4.25 in
Length: 3 in
Weight: 3.5 lb
End Rod: REC-034M
Accuracy: ± 0.037%
Linearity: 0.0003
Materials: Stainless Steel
Force Type: Compression, Tension
Hysteresis: 0.0002
Wire Gauge: 22 AWG
Load Button: LBC-034
Cable Length: 20 ft
Overload, Max: 300% FS
Repeatability: 0.0001
Safe Overload: 150% FS

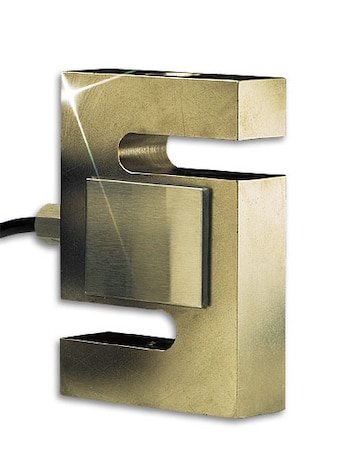

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Creep in 20 min: 0.0003
Bridge Resistance: 350 Ω
Electrical Output: 3 mV/V
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: NIST
Interchangeability: 0.0025
Load Cell Capacity: 5000 lbF
Zero/Balance Error: 0.01
Thermal Span Effect: 0.0008% rdg/°F
Thermal Zero Effect: 0.0015% FS/°F
Electrical Connection: Cable
Full Scale Deflection: 0.02 in
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 66 °C
Process Temperature, Min: -18 °C
Operating Temperature, Max: 66 °C
Operating Temperature, Min: -18 °C
