Height: 2.36 mm
Accuracy: ± 3.5 %
Linearity: ± 3.5%
Materials: Stainless Steel
Force Type: Compression
Hysteresis: ± 3.5%
Cable Length: 4 ft
Overload, Max: 150% FS
Repeatability: ± 3.5%
Safe Overload: 150% FS

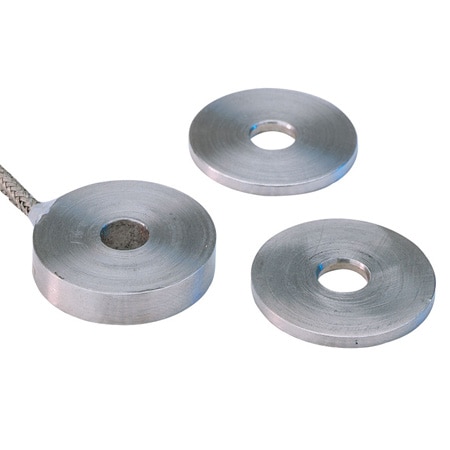

Load Cell Type: Load Washer
Outer Diameter: 38.1 mm
Supply Voltage: 10 Vdc
Bolt Size/Torque: 19 mm
Bridge Resistance: 120 Ω
Electrical Output: 2 mV/V
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 2 POINT NIST
Load Cell Capacity: 300000 N
Zero/Balance Error: ± 4%
Thermal Span Effect: ± 0.036% rdg/°C
Thermal Zero Effect: ± 0.018% FSO/°C
Electrical Connection: Cable
Through Hole Dimension: 19.6 mm
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -54 °C
